WGS-5225-8T2SV Planet wall mount ethernet switches

 Wall-mount Managed Switch with Advanced L2+/L4 Switching and Security

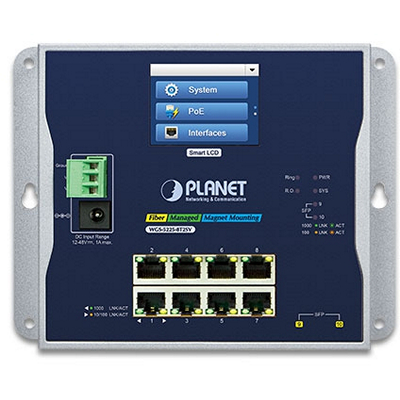

Designed to be installed in a wall enclosure or simply mounted on a wall at any convenient location, PLANET WGS-5225-8T2SV, an innovative, Industrial 8-port 10/100/1000T + 2-port 100/1000/2500BASE-X SFP Wall-mount Managed Switch with LCD Touch Screen, offers IPv6/IPv4 dual stack management, intelligent Layer 2 and Layer 4 management functions, and user-friendly interface. The WGS-5225-8T2SV is able to operate reliably, stably and quietly in any environment without affecting its performance. Featuring ultra networking speed and operating temperature ranging from -20 to 70 degrees C in a compact but rugged IP30 metal housing, the WGS-5225-8T2SV is an ideal solution to meet the demand for the following network applications:
　■ Building/Home automation network
　■ Internet of things (IoT)
　■ IP surveillance
　■ Wireless LAN

Hardware Specifications

Copper Ports: 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

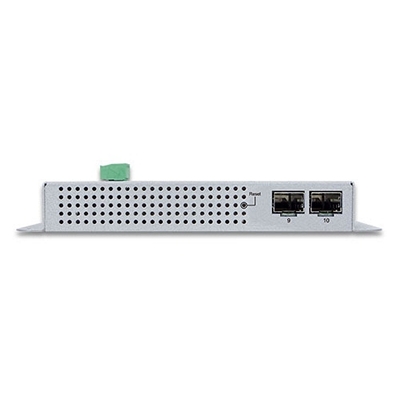

SFP/mini-GBIC Slots: 2 100/1000/2500BASE-X mini-GBIC SFP ports (Port-9 and Port-10)
Switch Architecture: Store-and-Forward
Switch Fabric: 26Gbps/non-blocking
Throughput (packet per second): 14.88Mpps@ 64 bytes packet
Address Table: 8K entries, automatic source address learning and aging
Shared Data Buffer: 4Mbits
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame: 9Kbytes
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection: 6KV DC
Enclosure: IP30 metal case

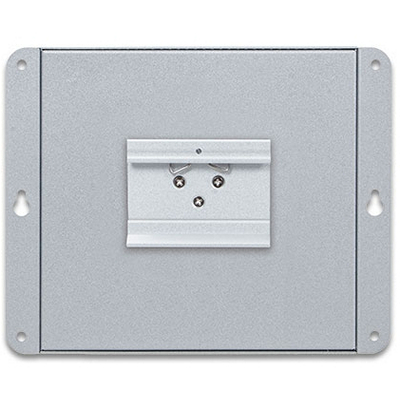

Installation: DIN rail kit and wall-mount
Connector: Removable 3-pin terminal block for power input
　- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
　- Pin 3 for earth ground
DC power jack with 2.0mm central pole
LED Indicator: System:
　PWR(Green)
　Ring (Green)
　Ring Owner (Green)
Per 10/100/1000T RJ45 Ports:
　10/100 LNK/ACT (Green)
　1000 LNK/ACT (Orange)
Per 100/1000/2500BASE-X SFP Interface:
　100 LNK/ACT (Orange)
　1G/2.5G LNK/ACT (Green)
Dimensions (W x D x H): 180 x 24.4 x 140 mm
Weight: 686g
Power Requirements: Dual 12~48V DC
Power Consumption: Max. 4.5 watts/15.4BTU (Power on without any connection)
Max. 8.5 watts/29.1BTU (Full loading with Ethernet)

Layer 2 Function

Basic Management Interfaces: Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSH, SSL, SNMP v3
Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port Status: Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring: TX/RX/both
1 to 1 monitor
VLAN: 802.1Q tag-based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
Supports 5 trunk groups with 2 ports per trunk group
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching
　- Port number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP/TOS field in IP packet
IGMP Snooping: IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping: MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List: IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control: Per port bandwidth control
　Ingress: 500Kb~1000Mbps
　Egress: 500Kb~1000Mbps
SNMP MIBs: RFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Layer 3 Function

IP Interfaces: Max. 8 VLAN interfaces
Routing Table: Max. 32 routing entries
Routing Protocols: IPv4 software static routing
IPv6 software static routing

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
ITU-T G.8032 Ethernet Ring Protection Switching
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2

Environment

Operating Temperature: -20 ~ 70 degrees C
Storage Temperature: -20 ~ 70 degrees C
Humidity: 5 ~ 95% (non-condensing)
