WGS-5225-8MT
IP40, IPv6/IPv4 Industrial L2+ 8 port 10/100/1000T M12 Wall-mount Managed Switch(-40~75 degrees C, X-coded M12, Relay Bypass function with two M12 ports, dual power input 12-48VDC, ERPS Ring, 1588 TC, Modbus TCP, Cybersecurity features, IPv4/IPv6 Static R
Protocols
Easily-deployed and Expanded Network
PLANET WGS-5225-8MT managed switch offers eight 10/100/1000BASE-T M12 ports and is housed in an IP40-rated enclosure with redundant 9-48 VDC power inputs. Designed to be deployed in the industrial environments, the WGS-5225-8MT offers wire-speed throughput, shock and vibration proofing, and a wide -40° to 75°C operating temperature range.
The WGS-5225-8MT offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-5225-8MT is able to operate reliably, stably and quietly in railway and other industrial applications subject to shock, vibration and other extreme conditions without affecting its performance. Besides, the WGS-5225-8MT with bypass relay ports ensure non-stop data flow even in the event of a power outage.
Applications
High Availability Networking with Excellent Redundancy for Surveillance System
The WGS-5225-8MT features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The WGS-5225-8MT is the ideal solution for surveillance system to build redundant connection and establish high bandwidth for public transmission system and railway transmission.
Bypass Relay Solution for Daisy Chain Topology
In a daisy chain topology, if there is one failed node, it will cause the failed links of other switches. For railway communication systems with interconnected networks, the failed upstream link in one train car will impact on the downstream link in other train cars. To prevent such a failure, the WGS-5225-8MT offers two ports with a bypass relay function. If one of the switches has power loss, the other ports of the swithc will bypass the failed relay circuit, enabling the network traffic to continue to flow smoothly to assure continuous system operation.
Features and Benefits
Physical Port
- 8-port 10/100/1000BASE-T, vibration-proof and dustproof M12 X-coded female connectors
Industrial Hardened Design
- 1 pair of bypass protection
- IP40-rated metal case
- Redundant power design
- 9 to 48V DC, redundant power with reverse polarity protection
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
- DIN-rail and wall-mount designs
- Supports 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Hardware Specifications

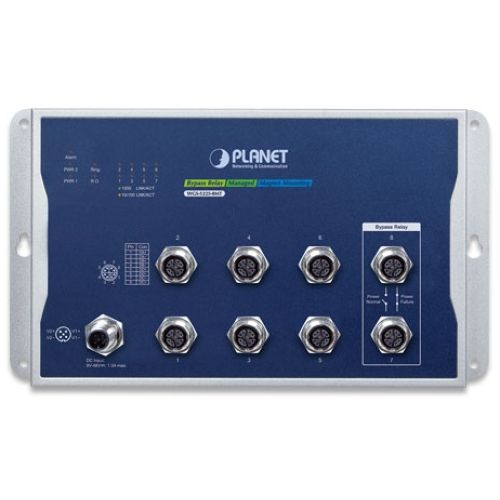

Copper Ports: 8 x M12, 8-pin X-coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports
Power Connector: 1 x M12, 5-pin A-coded male connector
Bypass Function (Pair): 1
Dimensions (W x D x H): 245 x 140 x 24.4 mm
Weight: 1 kg
Enclosure: IP40 metal case

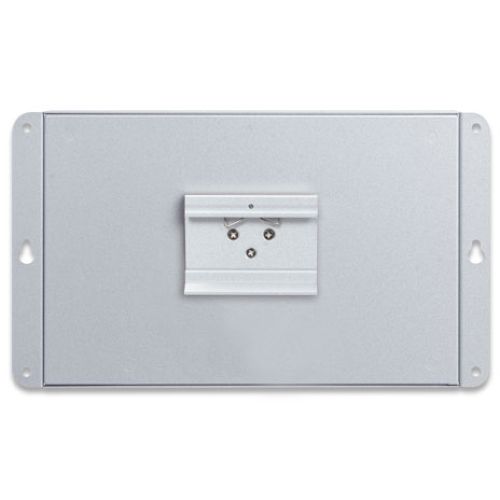

Installation: Wall-mount kit, magnetic-mount kit or DIN-rail kit
Power Consumption:
System on: Max. 7.68 watts/ 26.21 BTU
Full loading: Max. 11.04 watts/ 37.67 BTU
Power Requirements: Dual 9~48V DC
ESD Protection: 6KV DC
LED:
System: PWR1 (Green), PWR2 (Green), Alarm (Red) Ring (Green), R.O. (Green)
10/100/1000 RJ45 Interfaces:
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
