POE-171S Planet POE Injectors Splitter Extender

 Quick and Easy Gigabit High Power PoE Network Deployment

PLANET POE-171S Gigabit ultra Power over Ethernet splitter delivers the Ethernet digital data with DC 56V power over the twisted pair cables as an IEEE 802.3at/af Gigabit high Power over Ethernet splitter, and it separates the digital data and the power into three optional outputs (12V / 19V /24V DC) and distance up to 100 meters. If the POE-171S co-works with PLANET POE-171 (60-watt IEEE 802.3at PoE injector), it can offer more PoE applications, such as:

• PoE PTZ Speed Dome
• Other Network devices that need higher PoE power to work normally
• Thin-client
• AIO(All-in-One) touch PC
• Remote digital signage display

The POE-171S frees the device deployment from restrictions due to power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time.

50 watts of Power over 4-Pair UTP

The POE-171S and POE-171 ultra PoE solution use cabling standard as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-span (Pin 1,2,3 and 6) or Mid-span (Pin 4,5,7 and 8), it provides the capability to source up to 50 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.

Cost-effective and Easy Cabling Installation

In the IEEE 802.3at Gigabit high Power over Ethernet devices installed, the system administrator only has to connect one single RJ-45 Ethernet cable to carry both power and data from an IEEE 802.3at/af PoE injector to POE-171S, and then the POE-171S splits data and DC power to any of IP networking devices. Besides, to connect through IEEE 802.3at Power over Ethernet injector and POE-171S, you can also have the benefits of cost saving, easy networking planning and higher reliability. Upon the completion of the installation of IEEE 802.3at compliant devices, the POE-171S, when functioning with the POE-171, can make the connection while migrating or splitting the power and the Ethernet digital packets, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other Network devices that need 50-watt high power to work normally.

Applications

Ultra PoE Splitter and Injector Installation:

For a place which is hard to find the power inlet, the POE-171S and PLANET Ultra PoE Injector - POE-171 or POE-173, operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. The POE-171S separates digital data and power into three optional outputs (12V/19V/24V DC) to non-PoE devices such as laptops, PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.

Features and Benefits

Interface

• 2-Port RJ-45 interfaces
• - 1-Port Data + Power input
• - 1-Port Data output

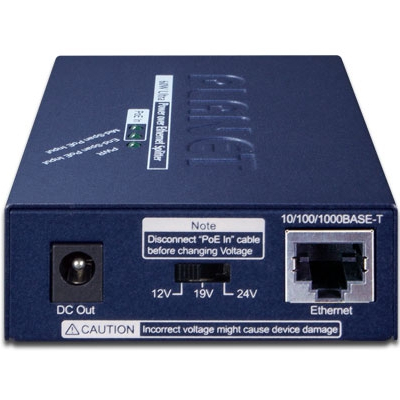

• 1-Port DC output power socket
• 1 DC 12V/19V/24V DIP switch

Power over Ethernet

• Ultra Power over Ethernet End-Span / Mid-Span PSE
• IEEE 802.3at/af PoE standard compliant
• Compatible with All IEEE 802.3at/af Powered Devices
• Supports 56VDC, 50pwatt PoE power output
• Splits the 56V DC power over RJ-45 Ethernet cable into DC 12V/19V/24V output
• Remote power feeding up to 100 meters

Hardware

• Metal case
• All-in-one compact size design

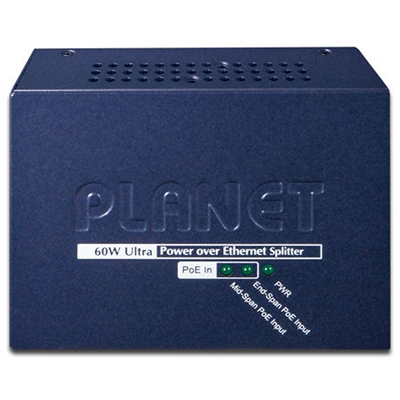

• LED indicators for Power LED and POE input
• Three-mode DC output DIP switch for 12V/19V/24V

Standard Compliance

• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3at High Power over Ethernet
• IEEE 802.3af Power over Ethernet
• FCC Part 15 Class A, CE

Specifications

Hardware Specifications

Interface:

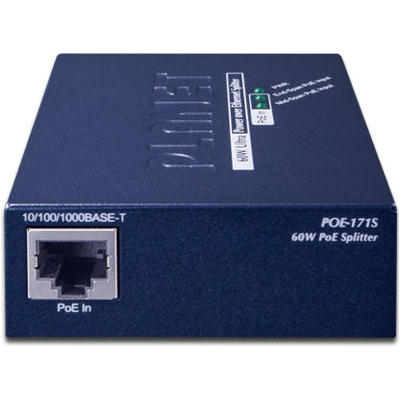

Input Port
1 x RJ-45 STP
PoE (Data + Power) In

Output Port
1 x RJ-45 STP
Data Out

DC Socket
DC Out

DIP-Switch
12V DC/19V DC/24V DC output voltage

LED Indicator: System: Power x 1 (Green)
Network Cable: Ultra PoE (60W):
　10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft)
802.3af / at PoE (15W / 30W):
　10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft)
Data Rate: 10/100/1000Mbps
Dimensions (W x D x H): 95 x 70 x 26 mm
Weight: 300g
Power Requirements: 52 ~ 56V DC
Power Consumption: 50 watts (maximum)
Operating Temperature: 0 ~ 50 degrees C
Storage Temperature: -10 ~ 70 degrees C
Humidity: 5 ~ 95% (Non-condensing)

Power over Ethernet

PoE Standard: IEEE 802.3at Power over Ethernet Plus
Power Output: DC 12V/19V/24V by DIP switch control
DC Plug connectors (Diameter):
2 external female plug cables:
5.5/2.5mm to 5.5/2.5mm
5.5/2.5mm to 5.5/2.1mm
PoE Power Supply Type: End-Span + Mid-Span
Power Pin Assignment: Pair 1: 1/2(-), 3/6(+)
Pair 2: 4/5(+), 7/8(-)

Standards Conformance

Standards Compliance: IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet
Regulation Compliance: FCC Part 15 Class A, CE
