ISW-514PTF Planet DIN Rail POE Unmanaged Switches

 Cost-effective Full PoE+ Power Solution Ideal for Hardened Environment

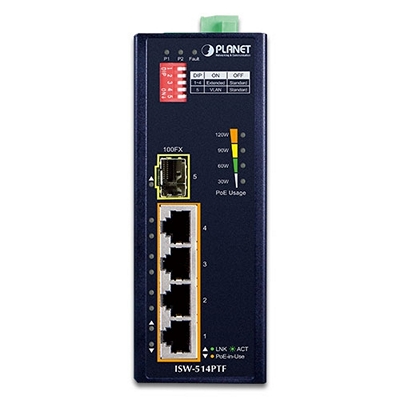

Featuring Plug and Play designed to be installed in heavy industrial demanding environments, the ISW-514PTF is a PLANET Industrial-grade, DIN-rail type Unmanaged Fast Ethernet PoE+ Switch with 4 10/100BASE-TX ports featuring IEEE 802.3at PoE+, and 1 100BASE-FX fiber optic interface for video uplink.
The ISW-514PTF is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.

Specifications

Hardware Specifications

Fast Ethernet Copper Ports: Four 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
PoE Injector Port: Four ports with 802.3af/at PoE+ injector function (Port-1 to Port-4)
SFP Port: One port 100BASE-FX SFP port
Switch Architecture: Store-and-Forward
Switch Fabric: 1Gbps/non-blocking
Switch Throughput@64 bytes: 0.74Mpps @64 bytes
MAC Address Table: 2K entries
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame: 10 Kbytes
DIP Switch (Port-1 to Port-4): Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps
VLAN mode: "Port-based VLAN Protection" where ports can be isolated from each other via one DIP switch. Only Port-5 can visit other ports.
Extend mode: 25-watt PoE transmit distance of 250m at speed of 10Mbps
LED Indicators: 3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault Alarm

2 x LED for PoE Copper Port (Port-1~Port-4):
Green: LNK/ACT (10/100Mbps)
Orange: PoE-in-Use

1 x LED for 10/100TX Copper Port (Port-5):
Green: LNK/ACT

4 x LED for PoE Usage
Orange

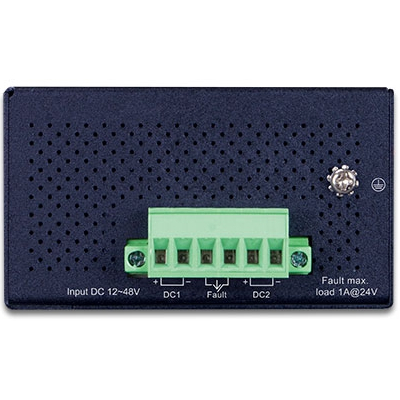

Connector: Removable 6-pin terminal block
Pin 1/2 for Power 1
Pin 3/4 for power fault alarm
Pin 5/6 for Power 2
Alarm: One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V AC
Power Requirements: 12~48V DC, 7A (max.)
Power Consumption/ Dissipation: 4.3 watts, 14.6 BTU (Standby without PoE function) at DC 12V power input
72.5 watts, 247.4 BTU (Full loading with PoE function) at DC 12V power input
5 watts, 17 BTU (Standby without PoE function) at DC 24V power input
103.9 watts, 354.5 BTU (Full loading with PoE function) at DC 24V power input
5.3 watts, 18.1 BTU (Standby without PoE function) at DC 48V power input
135.8 watts, 463.4 BTU (Full loading with PoE function) at DC 48V power input
Dimensions (W x D x H): 50 x 85.1 x 135 mm
Weight: 598g
ESD Protection: 5KV DC
Enclosure: IP40 metal case
Installation: DIN-rail kit and wall-mount kit

Power over Ethernet

PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type: End-span
Power Pin Assignment: 1/2 (+), 3/6 (-)
PoE Power Output: Per port 54V DC, max. 36 watts
PoE Power Budget (max.): 60W @12V DC input
90W @24V DC input
120W @48V DC input
Max. Number of Class 2 PDs: 4
Max. Number of Class 3 PDs: 4
Max. Number of Class 4 PDs: 4

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Environment

Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
