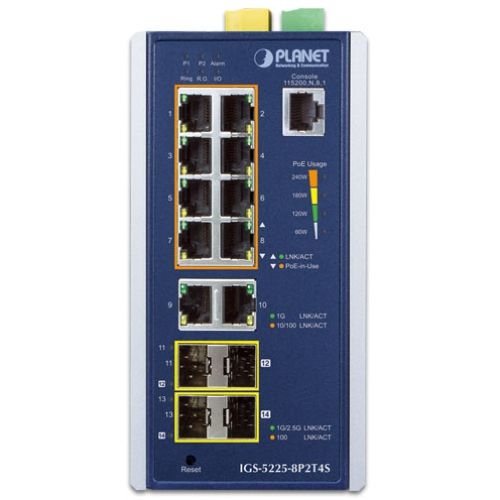

IGS-5225-8P2T4S Planet Gigabit PoE Managed Switches

 Advanced Manageable PoE Solution for Hardened Environment

PLANET IGS-5225-8P2T4S PoE L2+Industrial Managed PoE+ Switch, featuring 8 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, two 10/100/1000BASE-T ports, two 100/1000 BASE-X SFP ports and two 100/1000/2500 BASE-X SFP ports in an IP30 rugged metal case, can be installed in any difficult environment. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundantL2/L4 switching functions, Layer 3 static routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.

Applications

Industrial Area Department/Workgroup PoE Switch

Providing up to 8 PoE+, in-line power interfaces, the IGS-5225-8P2T4S can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-5225-8P2T4S makes the installation of IP cameras or wireless AP easier and more efficient.

Perfect Integration Solution for IP PoE Camera and NVR System

The IGS-5225-8P2T4S provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1G BASE-X SFP ports and two 100/1000/2500BASE-X SFP interfaces, the IGS-5225-8P2T4S can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-5225-8P2T4S facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-5225-8P2T4S undoubtedly brings an ideal secure surveillance system at a lower total cost.

Features and Benefits

Physical Port

• 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ injector function
• 2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
• 2 100/1000BASE-X SFP ports for SFP type auto detection
• 2 100/1000/2500BASE-X SFP ports for SFP type auto detection
• One RJ45 console interface for basic management and setup

Hardware Specifications

Copper Ports:    10 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Fiber Ports:
        2 100/1000BASE-X SFP interfaces (Port-11 and Port-12)
        2 100/1000/2500BASE-X SFP interfaces (Port-13 and Port-14)
PoE Injector Ports:  8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
RAM: 128MBytes
Flash Memory:    64MBytes
Reset Button:
        < 5 sec: System reboot
        > 5 sec: Factory default
ESD Protection:  6KV DC
Enclosure:   IP30 aluminum case
Installation:    DIN-rail kit and wall-mount kit
Connector:
        Removable 6-pin terminal block for power input
        Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
        Removable 6-pin terminal block for DI/DO interface
        Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm:   One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input:
2 digital input (DI)
　Level 0: -24V~2.1V (±0.1V)
　Level 1: 2.1V~24V (±0.1V)
　Input load to 24V DC, 10mA max.
Digital Output:  2 digital output(DO) Open collector to 24VDC, 100mA max.
Dimensions (W x D x H):  76.8 x 107.3 x 152 mm
Weight:  1.1kg
Power Requirements:  Dual 48~56V DC (>51V DC for PoE+ output recommended)
Power Consumption:
        Max. 7W/23.88 BTU (Power on)
        Max. 262W/893.98 BTU(Full Loading)
LED Indicator:
    System:
        Power 1 (Green)
        Power 2 (Green)
        Fault Alarm (Red)
        Ring (Green)
        Ring Owner (Green)
        DIDO (Red)
    Per 10/100/1000T RJ45 PoE+ Ports:
        PoE-in-Use (Amber)
        LNK/ACT (Green)
    Per 10/100/1000T RJ45 Ports:
        1000 LNK/ACT (Green)
        100 LNK/ACT (Amber)
    Per SFP Interface:
        100 LNK/ACT (Amber)
        1G/2.5G LNK/ACT (Green)
