IGS-4215-16T2S Planet Gigabit Managed Switches

 Cost-effective Full Solution Ideal for Hardened Environment

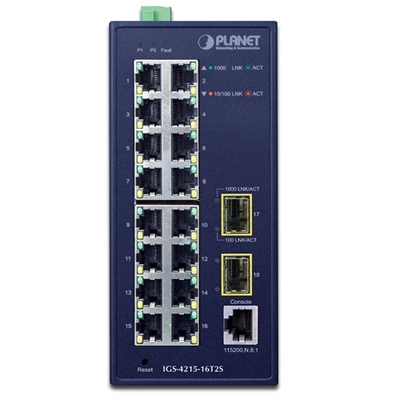

Designed to be installed in heavy industrial demanding environments, the IGS-4215-16T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit Switch family to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports, 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-16T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

Specifications

Hardware Specifications

Copper Ports: 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Gigabit SFP Slots: 2 100/1000BASE-SX/LX/BX SFP interfaces
Console: 1 RJ45 serial port (115200,8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 36Gbps (non-blocking)
Switch Throughput@64 bytes: 26.79Mpps@ 64 bytes
MAC Address Table: 8K entries
Shared Data Buffer: 4.1Mbits
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame: 10 Kbytes
ESD Protection: 6KV DC
Enclosure: IP30 metal case
Installation: DIN-rail kit and wall-mount ear
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
LED: System:
　Green: Power 1
　Green: Power 2
　Red: Power Fault
Per 10/100/1000T RJ45 Ports:
　Green: 1000 LNK/ACT
　Orange: 10/100 LNK/ACT
Per SFP Interface:
　Green: 1000 LNK/ACT
　Orange: 100 LNK/ACT

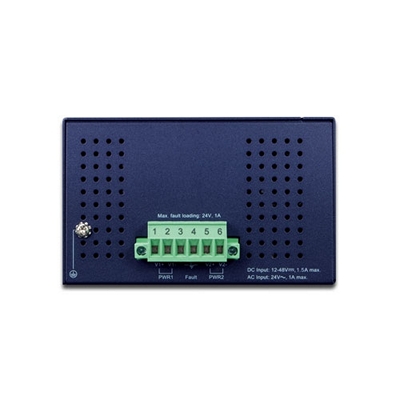

Connector: Removable 6-pin terminal block for power input
- Pin 1/2 for Power 1
- Pin 3/4 for fault alarm
- Pin 5/6 for Power 2
Alarm: One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V DC
Power Requirements: Dual 12~48V DC
24V AC
Power Consumption: DC input:
Max. 3.4 watts/11.6BTU (System on)
Max. 12.5 watts/42.7BTU (Full loading)

AC input:
Max. 6 watts/20.5BTU (System on)
Max. 15 watts/51.2BTU (Full loading)
Dimensions (W x D x H): 66 x 107 x 152 mm
Weight: 813g

Layer 2 Functions

Port Mirroring: TX/RX/Both
Many-to-1 monitor
Up to 4 sessions
VLAN: 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation: IEEE 802.3ad LACP and static trunk
Cisco ether-channel (Static Trunk)
Up to 8 trunk groups
Up to 8 ports per trunk group with 16Gbps bandwidth
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping: IPv4 IGMP snooping v1, v2, v3
IGMP querier
IGMP Snooping port filtering
MLD Snooping: IPv6 MLD snooping v1, v2, up to 256 multicast groups
Access Control List: IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
QoS: Ingress/Egress Rate Limit per port bandwidth control
8-level priority for switching
- Port number
- 802.1p priority
- DSCP/IP precedence of IPv4/IPv6 packets
- Typical network application
DSCP remarking
Security: IEEE 802.1X port-based authentication
IP-MAC port binding
MAC filtering
Static MAC address
Built-in RADIUS client to cooperate with RADIUS server
RADIUS/TACACS+ authentication
DHCP Relay and DHCP Option 82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Storm control support
- Broadcast / Multicast / Unicast

Management Functions

Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSHv2, TLS v1.1/v1.2, SSL, SNMP v3
System Management: Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
SNMP MIBs: RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2

Environment

Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
