IGS-20040MT Planet Gigabit Managed Switches

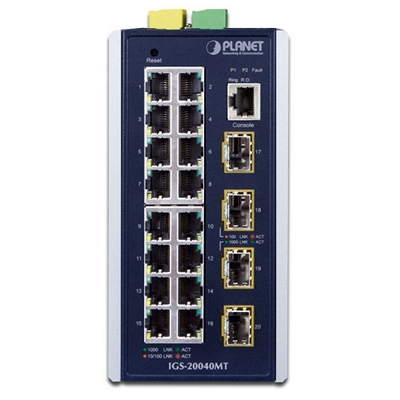

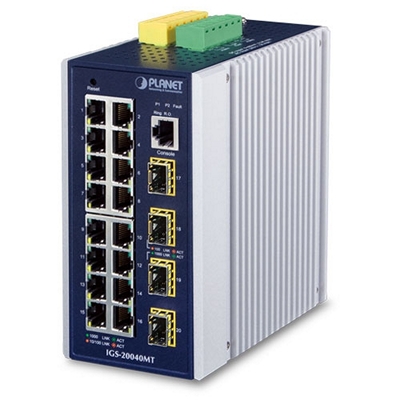

 PLANET IGS-20040MT is a fully-managed Gigabit fiber switch usually designed for the industrial network. It features 16 10/100/1000BASE-T copper ports, 4 100/1000BASE-X SFP ports and redundant power system in an IP30 rugged but compact-sized case that can be installed in any difficult environment without space limitation. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. The IGS-20040MT can operate stably under the temperature range from -40 to 75 degrees C and allows either DIN-rail or wall mounting for efficient use of cabinet space. With 4 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.

Specifications

Hardware Specifications

Copper Ports: 16 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP Slots: 4 1000BASE-SX/LX/BX SFP interfaces (Port-17 to Port-20)
Compatible with 100BASE-FX SFP
Console: 1 x RJ45 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 40Gbps/non-blocking
Throughput (packet per second): 29.7Mpps@64Bytes
Address Table: 8K entries, automatic source address learning and ageing
Shared Data Buffer: 4Mbits
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame: 9Kbytes
SDRAM: 512Mbytes
Flash Memory: 64Mbytes
Reset Button: < 5 sec: System reboot
> 5 sec: Factory Default

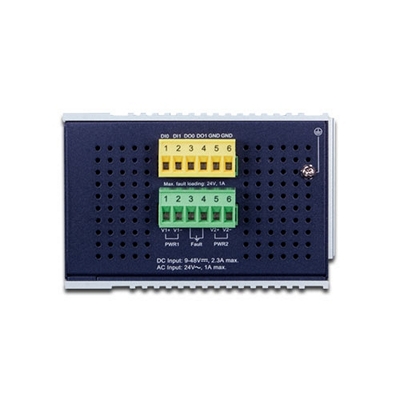

Connector: Removable 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 0 & DI 1; Pin 3/4 for DO 0 & DO 1; Pin 5/6 for GND
Alarm: One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V AC
Digital Input(DI): 2 Digital Input (DI):
　Level 0: -24V~2.1V (±0.1V)
　Level 1: 2.1V~24V (±0.1V)
　Input Load to 24V DC, 10mA max.
Digital Output (DO): 2 digital output:
　Open collector to 24VDC, 100mA
Enclosure: IP30 aluminum case
Installation: DIN-rail kit and wall-mount kit
Dimensions (W x D x H): 76.8 x 107.3 x 152 mm
Weight: 1,043g
Power Requirements: DC 9V to 48V
AC 24V
Power Consumption: 8 watts/27BTU (System on)
17 watts/58BTU (Full loading)
ESD Protection: 6KV DC
LED Indicator: System:
　Power 1 (Green)
　Power 2 (Green)
　Fault Alarm (Green)
　Ring (Green)
　R.O. (Green)
Per 10/100/1000T RJ45 Port:
　1000 LNK/ACT (Green)
　10/100 LNK/ACT (Orange)
Per SFP Interface:
　1000 LNK/ACT (Green)
　100 LNK/ACT (Orange)

Layer 2 Management Functions

Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Power saving mode control
Port Status: Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status.
Port Mirroring: TX/RX/Both
Many to 1 monitor
VLAN: 802.1Q tag-based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/Static Trunk
Support 10 groups of 8-port trunk support
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping: IPv4 IGMP (v1/v2/v3) Snooping
IPv4 IGMP Querier mode support
Up to 255 multicast Groups
MLD Snooping: IPv6 MLD (v1/v2) Snooping
IPv6 MLD Querier mode support
Up to 255 multicast Groups
Access Control List: IP-based ACL/MAC-based ACL
ACL based on:
　- MAC Address
　- IP Address
　- Ethertype
　- Protocol Type
　- VLAN ID
　- DSCP
　- 802.1p Priority
Up to 256 entries
Bandwidth Control: Per port bandwidth control
Ingress: 500Mbps ~1000Mbps
Egress: 500Mbps ~1000Mbps
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching
　- Port Number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP/TOS field in IP Packet
Synchronization: IEEE 1588v2 PTP(Precision Time Protocol)
　- Peer-to-peer transparent clock
　- End-to-end transparent clock

Layer 3 Functions

IP Interfaces: Max. 8 VLAN interfaces
Routing Table: Max. 32 routing entries
Routing Protocols: IPv4 software static routing
IPv6 software static routing

Switch Management

Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSHv2, TLS v1.2, SNMPv3
System Management: Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
SNMP MIBs: RFC-1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring

Environment

Operating: Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
