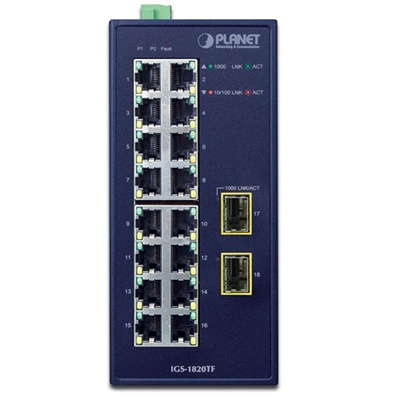

IGS-1820TF
Industrial 16-Port 10/100/1000T + 2-Port 1000X SFP Ethernet Switch (-40~75 degrees C)
Bisogno di aiuto?
Reliable Industrial Ethernet Networks with Plug and Play Configuration
PLANET’s new IGS-1820TF comes with high-density 16 10/100/1000BASE-T ports, 2 1000BASE-X SFP interfaces and redundant power system, it’s designed for heavy industrial demanding environments. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy. With the IP30-rated rugged but compact-sized case, it can operate stably under the temperature range from -40 to 75 degrees C and can be installed in any difficult environment without space limitation.
Specifications
Hardware Specifications
Gigabit Ethernet Copper Ports: 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Gigabit SFP Slots: 2 1000BASE-SX/LX/BX SFP interfaces
Switch Architecture: Store-and-Forward
Switch Fabric: 36Gbps (non-blocking)
Throughput (packet per second): 26.79Mpps@ 64 bytes
Address Table: 8K entries, automatic source address learning and aging
Shared Data Buffer: 4.1Mbits
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame: 10Kbytes
ESD Protection: 6KV DC
Enclosure: IP30 metal case
Installation: DIN-rail kit and wall-mount kit

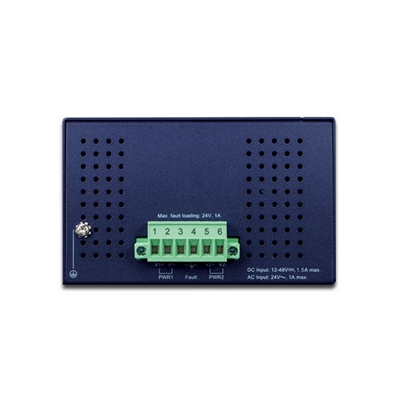

Connector: Removable 6-pin terminal block for power input
- Pin 1/2 for Power 1
- Pin 3/4 for fault alarm
- Pin 5/6 for Power 2
Alarm: One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V DC
Dimensions (W x D x H): 66 x 107 x 152 mm
Weight: 745g
Power Requirements: Dual 12~48V DC
24V AC
Power Consumption: DC input:
Max. 3.4 watts/11.6BTU (System on)
Max. 11.1watts/37.9BTU (Full loading)
AC input:
Max. 6 watts/20.5BTU (System on)
Max. 15 watts/51.2BTU (Full loading)
Standards Conformance
Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
