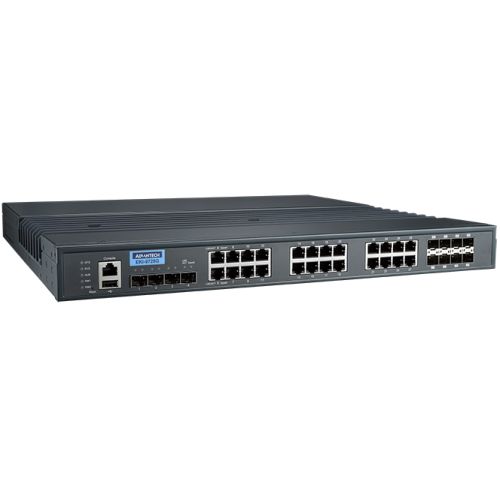

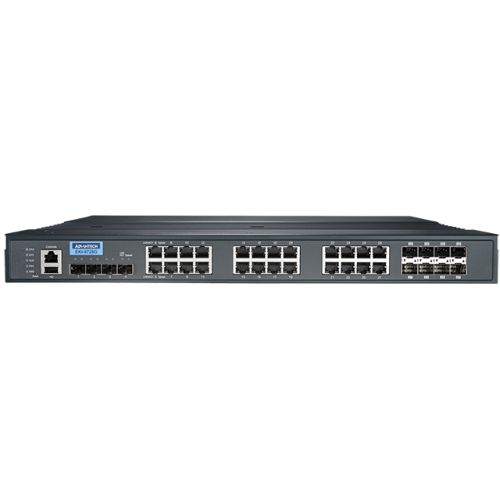

EKI-9728G-4X8CI-AE ADVANTECH Rackmount Ethernet Switches

 Features

• 16 x Gigabit RJ-45 ports + 4 x 10GbE SFP ports + 8 x Gigabit combo ports
• L3 function: static route, RIP v1/v2, OSPF v2, VRRP
• SFP socket for easy and flexible fiber expansion
• Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
• Security: 802.1x HTTPS, SSH, and SNMPv3
• Dual power input and 2 x relay output
• Wide operating temperature range of -40 ~ 85˚C

Introduction

The EKI-9728G is an L3 management switch that supports RIP v1/v2, OSPF v2, and VRRP. Its wide operating temperature of -40 ~ 85°C means that it can operate reliably in harsh
environments. Designed with 16 Gigabit ports, 4 10GbE SFP ports, and 8 Gigabit ports, this unit provides abundant and flexible connection options. Finally, the EKI-9728G series
feature dual power inputs to ensure system stability, and 2 relay outputs for greater user flexibility.

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
LAN: 10/100/1000BASE-TX, optional 100BASE-FX, 1000BASE-SX/LX/LHX/XD/ZX/EZX

Transmission Distance:
Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45
cable suggested for Gigabit port)
SFP: Up to 110 km (depends on SFP)

Transmission Speed:
Ethernet: 10/100 Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps

Interface

Connectors:
16 x RJ45 (Ethernet)
8 x RJ45/SFP (mini-GBIC) combo ports
4 x SFP Ports

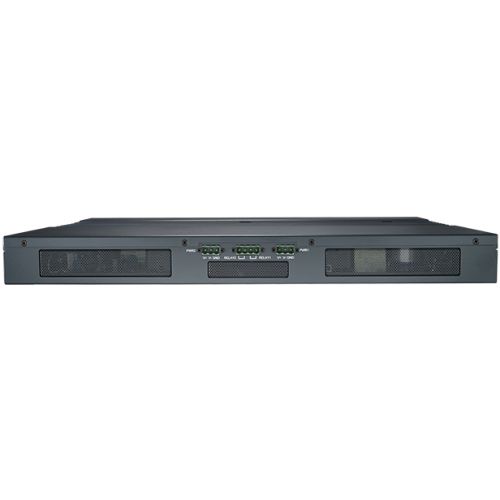

3-pin removable screw terminal (Power)
4-pin removable screw terminal (Relay)

LED Indicators:
10/100T (X): Link/Activity, Duplex/Collision
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
SFP: Link/Activity

Console RS-232 (RJ45)

Mechanism

Enclosure: IP30, metal shell with solid mounting kits
Dimensions (W x H x D): 442 x 44 x 352 mm (17.4" x 1.73" x 13.85")
Mounting: 1U 19" Rack mount

Power

Power Consumption: 19.24 W @ 110VAC
Power Input: 90 ~ 264AC/88 ~ 370VDC
Fault Output: 2 Relay Outputs

Protection

Power Reverse: Present
Overload Current: Present

Environment

Operating Temperature: -40 ~ 85°C (-40 ~ 185°F)
Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity: 10 ~ 95% (non-condensing)
Storage Humidity: 10 ~ 95% (non-condensing)

Certification

EMI: CE FCC EN55022 Class A
EMS:
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
