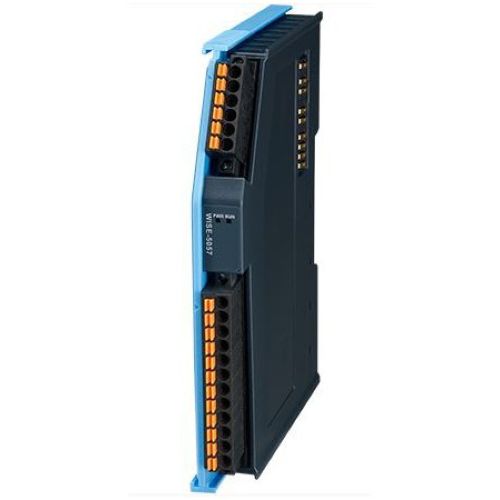

WISE-5057-A ADVANTECH Sensors

Specifications

General

Certification: CE, FCC class A
Connector:
Pluggable 6P+12P
push-in terminal
(#28~16 AWG)

Enclosure: PC
Power Consumption: 2.5W@24VDC
Protocol: EtherCAT
Transmission Rate: 100bps
Distributed Clock: Default not supported
LED Indicator: PWR, RUN

Digital Output

Channels: 16 (Sink Type)
Voltage Rating: 10~30VDC
Rated Current Output: 0.3A per channel at signal "1"
Leakage Current: 25 μA per channel at signal "0"

Output Delay:
From logic level 0 to 1: 10μs
From logic level 1 to 0: 100μs

Protection

Isolation Voltage: 2,000 VDC
Internal Flyback diode for inductive load

Environment

Operation Temperature: -10~60°C (vertical mounted)
Storage Temperature: -40~85°C
Relative Humidity: 5~95% (non-condense)
