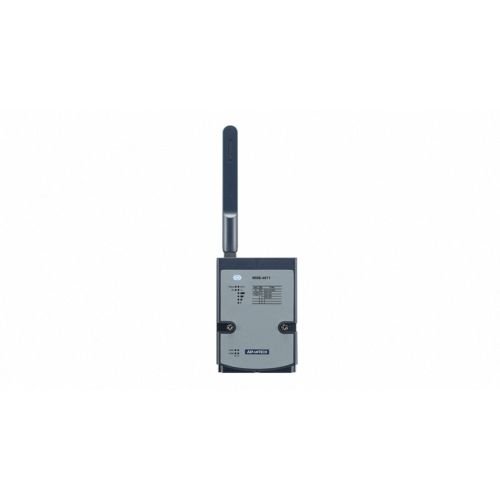

WISE-4671-UA ADVANTECH Sensors

Features

• Global coverage of Cat. NB1 and Cat. M1 frequency bands
• Application-ready I/O combination with optional IP65 I/O
• Wide voltage power input with 10 ~ 50VDC
• Data buffered function with time stamp prevents data loss
• Fast and easy deployment to reduce operation cost
• Supports direct cloud service for IoT integration
• Support MQTT, CoAP & LwM2M protocol
• GPS/Galileo/BeiDou/GLONASS support

Introduction

NB-IoT and LTE Cat M1 are new wireless technologies included in the 5G evolution of
cellular technology standards defined by the 3rd Generation Partnership Project (3GPP).
NB-IoT and LTE Cat M1 feature low power consumption and utilize LTE networks based
on licensed spectrum bands. These technologies are optimized for connectivity to
machines, assets and sensors in order to enable IoT applications such as smart cities,
smart agriculture and remote asset management.
WISE-4671 series is a cellular based IoT wireless sensor node compliant with LTE Cat.
NB1 and Cat. M1 with external for flexible installation. In addition to offering various I/O
types, WISE-4671 series provides a data logger and direct cloud connectivity so that data
can be published to the cloud by messaging protocol such as MQTT, CoAP, LwM2M with
secure socket supported.

Specifications

Wireless Communication

3GPP Standards: R.13, Cat. NB1/ Cat. M1
Frequency Band: B2, B3, B4, B8, B12, B13, B20, B28
Antenna Type: External

GPS

GNSS Systems: GPS, GLONASS, Galileo, BeiDou and QZSS signals
Max. Update Rate: Every 15 seconds
Accuracy: Position: 2.5 m Typ.
Acquisition: Cold starts: 31s Typ.
Antenna Type: Internal

General

Power Input:
- Built-in 4100mAh Lithium rechargeable battery pack 10~50VDC
- external power
- 17-21VDC Solar Panel

Power Consumption:
Non-battery Charging: 1.4W @ 12VDC
When Battery Charging: 11W @ 24VDC

Configuration Interface: Micro-B USB
SIM: 4FF/Nano SIM
Connector:
Power: M12 4-pin code-A male x 1
I/O: M12 8-pin code-A female x 2
LED Indicator: Status, Error, Tx, Rx, Signal Level, Battery Level
Mounting: DIN 35 rail, wall, and pole
Dimension (W x H x D): 82 x 122 x 49 mm (without antenna)
Certification: CE, FCC, PTCRB, AT&T, Verizon

Operating Temperature

With rechargeable battery: 0 ~ 60 °C (32 ~ 140 °F)
Without battery: -25 ~ 70 °C (-13 ~ 158 °F)

Storage Temperature

With rechargeable battery: -20 ~ 60 °C (-4 ~ 140 °F)
Without battery: -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity: 5 ~ 95% RH (non-condensing)
Storage Humidity: 0 ~ 95% RH (non-condensing)
