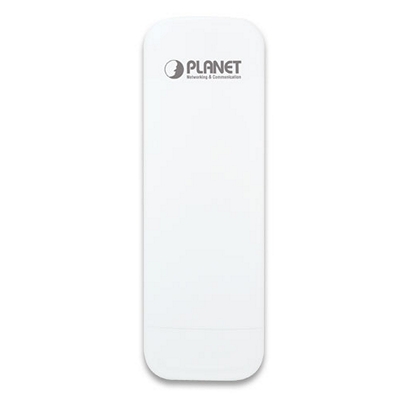

WBS-512AC Planet Access Point

Flexible and Reliable Outdoor Wireless Solution with Superior Performance

PLANET WBS-512AC 802.11ac WAVE 2 900Mbps Outdoor Wireless CPE offers a better range and excellent throughput than those of the traditional wireless device. With the standard IEEE 802.3at Power over Ethernet (PoE) design, the WBS-512AC can be easily installed in the areas where power outlets are not available. The WBS-512AC is definitely suitable for wireless IP surveillance, and bridge link of building to building and backbone of public service. Additionally, the self-healing capability keeps connection alive all the time. With the IP55-rated outdoor enclosure, the WBS-512AC can perform normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor environments.

Applications

Long-distance Connection

PLANET WBS-512AC is specially designed for long-distance outdoor surveillance and wireless backhaul solutions that are capable of providing farther connection through the built-in 14dBi dual-polarity antenna. It supports MU-MIMO WAVE 2.0 that can offer the more powerful transmission speed for data rate. With multiple operation modes and adjustable Tx power, it is easy to install and adjust the suitable setting in appropriate locations. In the aspect of management, the traffic shaping and IEEE 802.1Q VLAN that the WBS-512AC features regulate network data transfer by delaying the flow of less important or less desired packets. Furthermore, the self-healing capability keeps connection alive all the time, thus reducing the maintenance effort and deployment cost.

Features and Benefits

Industrial Compliant Wireless LAN and LAN

• Compliant with the IEEE 802.11a/n/ac WAVE2 MU-MIMO wireless technology
• 2T2R architecture with data rate of up to 900Mbps
• Equipped with two 10/100/1000Mbps RJ45 ports with auto MDI/MDI-X supported

Fixed Network Broadband Router

• Supported WAN connection types: DHCP, Static IP, PPPoE
• Supports Port Forwarding and DMZ for various networking applications
• Supports DHCP server in Gateway/WISP mode

RF Interface Characteristics

• Built-in 14dBi dual-polarization antenna
• High output power with multiply-adjustable transmit power control

Specifications

Hardware

Standard Support: IEEE 802.11a/n/ac
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r
Dimensions (W x D x H): 87 x 38 x 260 mm
Weight: 405g
Power Requirements: 48V DC IN,0.5A, IEEE 802.3 at PoE+ or
12V DC IN, 1.0A from DC Jack
Power Consumption (max.): < 10W
Interface: Wireless IEEE 802.11a/n/ac, 2T2R

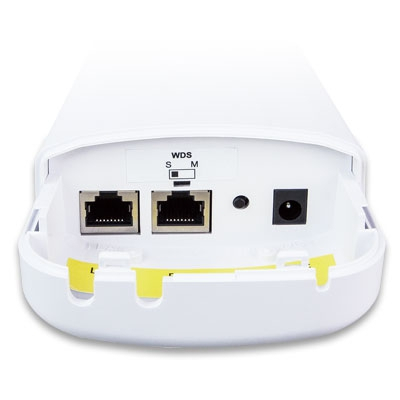

PoE: 1 x 10/100/1000BASE-TX, auto-MDI/MDIX, 802.3 at PoE In
LAN: 1x 10/100/1000BASE-TX, auto-MDI/MDIX
Button: Reset/Pair button, PtP Switch
Antenna: Built-in 14dBi directional antenna with dual polarization

Half-power beam width
Vertical H: 70 V: 15
Horizontal H: 50 V: 15
Data Rate: IEEE 802.11a: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps
IEEE 802.11ac (80MHz): up to 867Mbps
Media Access Control: CSMA/CA
Modulation: 802.11 a/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
Frequency Band: FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz
Operating Channels: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels)
ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 channels)

5GHz channel list will vary in different countries according to their regulations.
Max. Transmit Power (dBm): FCC: up to 25 ± 1dBm
ETSI: < 20dBm (EIRP)

Environment & Certification

Operating Temperature: -20 ~ 70 degrees C
Operating Humidity: 5 ~ 90% (non-condensing)
IP Level: IP55
ESD Protection: ± 8kV air-gap discharge
± 4kV contact discharge
Surge Protection: ± 4kV
Regulatory: CE, RoHS

Software

LAN: Static IP/DHCP
Supports IP-MAC binding
WAN Type (GW/WISP mode): Static IP
Dynamic IP
PPPoE
Wireless Modes: Access Point
Gateway
Repeater
Super WDS
WISP
Channel Width: 20MHz, 40MHz, 80MHz
Encryption Type: 64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security: Enable/Disable SSID Broadcast
Wireless Max. 32 MAC address filtering
User Isolation
Max. SSIDs: 4
Max. Wireless Clients: 64 per radio (50 is suggested, depending on usage)
Max. WDS Peers: 4 (Up to 3 peers by using “One-click WDS”)
Wireless QoS: Supports Wi-Fi Multimedia (WMM)
Wireless Advanced: Auto Channel Selection
5-level Transmit Power Control (Max. (100%), Efficient (75%), Enhanced (50%), Standard (25%), Min. (12.5%))
Client Limit Control, Coverage Threshold
Wi-Fi channel analysis chart
Fast Roaming(IEEE 802.11k, 802.11r, 802.11v)
Status Monitoring: Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server
VLAN: IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs
Self-healing: Supports auto reboot settings per day/hour
Management: Remote management through PLANET DDNS/Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Central Management: Applicable controllers: WAPC-500, WAPC-1000, NMS-500, NMS-1000V
