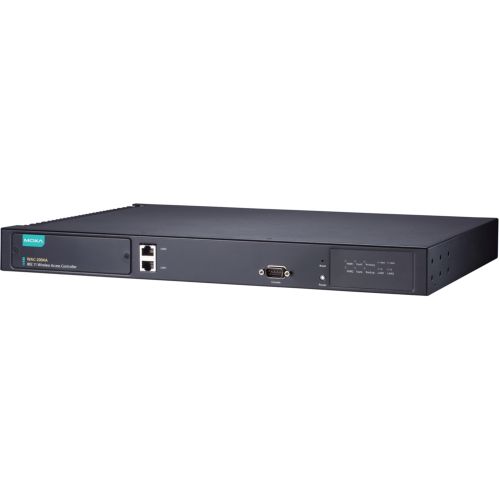

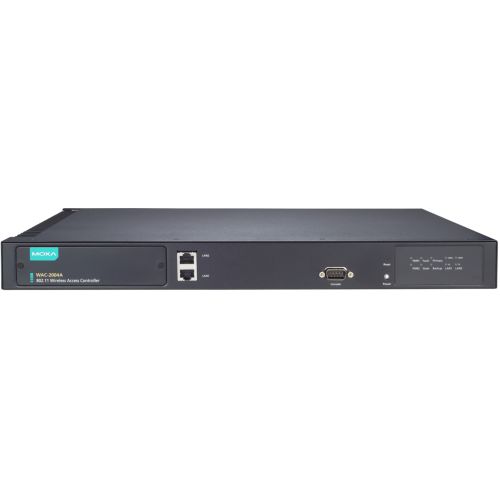

WAC-2004A MOXA Access Point

 Features and Benefits

•  2-in-1 AP controller and mobile IP home agent
•  Millisecond-level controller-based Turbo Roaming
•  IEEE 802.11i-compliant wireless security
•  Layer-3 mobile IP technology
•  Scalable tunneling capacity

 Introduction

The goal of zero-latency roaming is to allow clients to seamlessly maintain their connection as they move from one access point to another. Moxa's WAC-2004A Industrial Wireless Access Controller features Controller-based Turbo Roaming technology to enable millisecond-level roaming across different IP subnets. The advanced roaming algorithm along with Mobile IP technology allows wireless clients to roam between APs in different IP subnets within milliseconds, while upholding stringent security in extremely demanding environments. The rugged WAC-2004A is capable of operating at temperatures of 0 to 50°C and is suitable for on-site installation in harsh industrial environments.

Industrial wireless access controller with EU power cord, 0 to 50°C operating temperature

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector):
        2
        Port 1: Communications port for WAC/HA
        Port 2: Reserved
Standards:
        IEEE 802.11i for Wireless Security
        IEEE 802.3 for 10BaseT
        IEEE 802.3ab for 1000BaseT(X)
        IEEE 802.1X for authentication

Ethernet Software Features
Management: IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility
Security: HTTPS/SSL, RADIUS, SSH
Time Management: NTP Client, SNTP

Serial Interface
Console Port: RS-232 ports x 1 (DB9 male)
Flow Control: RTS/CTS, XON/XOFF
Parity: None, Even, Odd, Space, Mark

Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Wireless Access Control
Controller Failover Mode: 1-on-1 hot backup
Handover Time: 50 ms
Roaming Support: Turbo Roaming (L2/L3) with inter-controller capabilities
WLAN Products Supported:
        Layer 2 networks: Up to 190 clients roaming between 400 APs
        Layer 3 networks: Up to 100 clients roaming between 190 APs

Supported Devices
TAP Products: TAP-213/323 Series
AWK Products: AWK-3131A-RTG Series

Power Parameters
Input Current: 1.2 A @ 100 VAC
Input Voltage: 100 to 240 VAC
No. of Power Inputs: 2
Operating Voltage: 100 to 240 VAC

Physical Characteristics
Housing: Metal
Dimensions (without ears): 304 x 440 x 44 mm (11.97 x 17.32 x 1.73 in)
Weight: 4,550 g (10.03 lb)
Installation: 19-inch rack mounting

Environmental Limits
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Safety
IEC 60950-1, UL 62368-1, IEC 62368-1
EMC: EN 55032/35, EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
IEC 61000-4-3 RS: 1400 MHz to 2000 MHz: 10 V/m
IEC 61000-4-3 RS: 2000 MHz to 2700 MHz: 5 V/m
IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 100 A/m
Declaration: Green Product: RoHS, CRoHS, WEEE

MTBF
Time: 447,959 hrs
Standards: Telcordia SR332

Warranty
Warranty Period: 5 years
