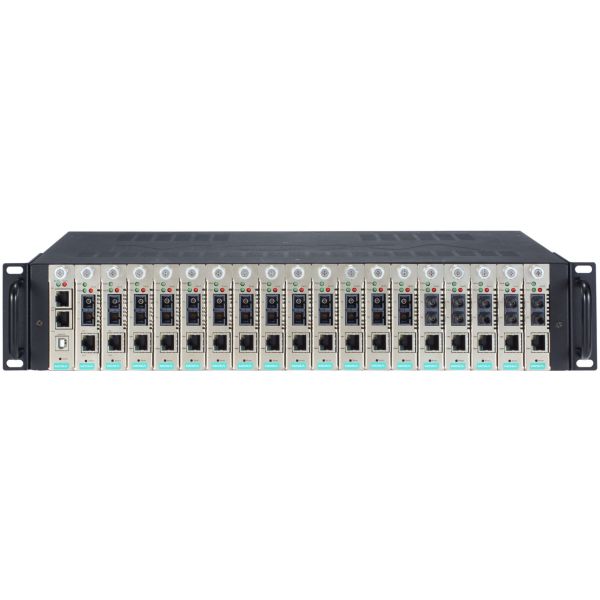

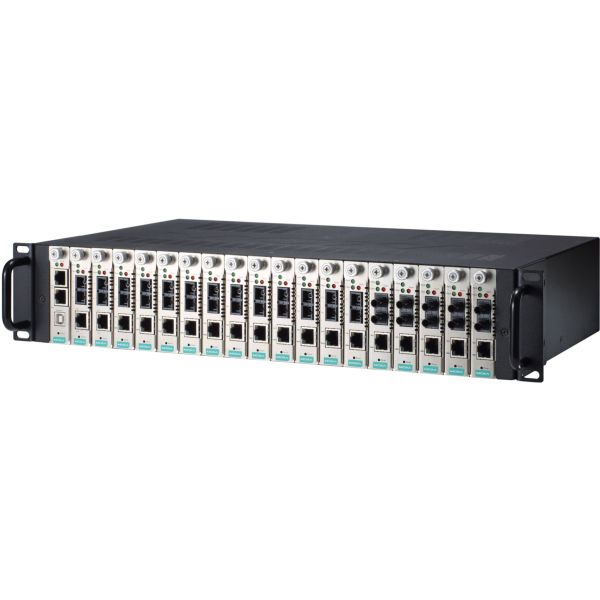

TRC-2190-AC MOXA Media Converter Chassis

Features and Benefits

• 19-inch chassis for rackmount use
• 18 slots for high density applications
• Supports dual power input with redundancy
• Fanless chassis design reduces servicing costs
• SNMP/web console for easy management
• -20 to 55°C operating temperature range

Introduction

The TRC-2190 series provides 18 slots for media converter modules from the CSM-400 series of Ethernet-to-fiber management modules. It also supports SNMP/web console for remote management and monitoring.
A TRC-2190 chassis comes with one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-2190 series’ power input module supports a fanless chassis design, as well as a -20 to 55°C operating temperature range.

Ethernet Interface

Number of Ports    2
Speed    10/100 Mbps, auto MDI/MDIX
Connector    8-pin RJ45
Magnetic Isolation Protection    1.5 kV built-in

USB Interface

Number of Ports    1
USB Standard    USB 1.1/2.0 standard
Connector    USB Type B

Software

Network Protocols    ICMP, IP, TCP, DHCP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP
Configuration Options    SNMP/HTTP/Telnet/USB/SSH/HTTPS

Physical Characteristics

Housing    SECC (1.2 mm)
Dimensions    440 x 260 x 77 mm (18.6 x 11 x 3.3 in)
Weight    5.2 kg (11.4 lbs), with one power module installed
Number of Slots    18 slots on the front for slide-in modules, 2 slots on the back for power supply modules

Environmental Limits

Operating Temperature    -20 to 55°C (-4 to 131°F)
Storage Temperature    -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity    5 to 95% (non-condensing)

Power Requirements

Input Voltage    Universal 100 to 240 VAC (47 to 63 Hz)
Power Consumption    Max. Output: 3.2A @ 36VDC

Overload Current Protection: 1.1 A
Connection: 1 removable 3-contact terminal block
Reverse Polarity Protection: Present

Standards and Certifications

Safety    UL 60950-1, EN 60950-1
EMC    CE, FCC
EMI    EN 55032 Class A, FCC Part 15 Subpart B Class A
EMS    EN 61000-4-2 (ESD) Contact: 4 kV; Air: 8 kV
EN 61000-4-3 (RS) 80 MHz to 1 GHz: 3 V/m
EN 61000-4-4 (EFT) Power: 1 kV; Signal: 0.5 kV
EN 61000-4-5 (Surge) Power: 1 kV; Signal: 0.5 kV
EN 61000-4-6 (CS) 150 kHz to 80 MHz: 3 V/m
EN 61000-4-8 (PFMF)
EN 6100
Green Product    RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time    1,055,112 hrs
Standard    Telcordia (Bellcore), GB

Warranty

Warranty Period: 5 years
