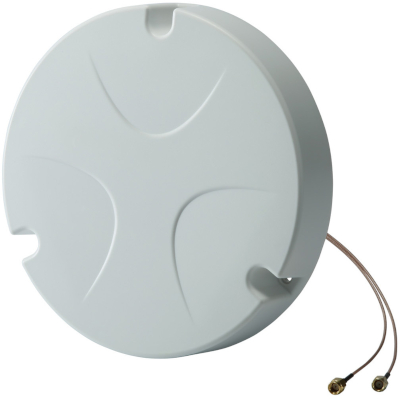

MAT-WDB-CA-RM-2-0205
MIMO 2x2, 2.4/5 GHz, dual-band ceiling antenna, 2/5 dBi, RP-SMA-type (male)
Features and Benefits
- RP-SMA-type (male) connector
- Lightweight
- Easy to mount on the ceiling
- -40 to 75°C operating temperature range
Introduction
The MAT-WDB-CA-RM-2-0205 antenna is a lightweight MIMO 2x2 dual-band ceiling antenna with a RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and is designed to operate in temperatures from -40 to 75°C.
Specifications
Antenna Characteristics
Frequency: 2.4 to 2.5, 4.9 to 5.9 GHz
Antenna Type: MIMO 2x2, Omni-directional
Typical Antenna Gain: 2/5 dBi
Connector: RP-SMA (male)
Impedance: 50 ohms
Polarization: Linear
HPBW/Horizontal: 360°
V.S.W.R.: 2:1 max.
Power Handling: 10 W (max.)
Physical Characteristics
Weight: 115 g (0.25 lb)
Height: 37 mm (1.46 in)
Diameter: 210.9 mm (8.3 in)
Radome Color: White
Radome Material: ABS
Installation: Ceiling mount
Cable: RG-178
Cable Length: 250 mm (9.84 in)
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
Warranty Period: 1 year
