LN1152-868M, Indoor IP30 LoRa Node Controller – EU868 MHz. (RS232, RS485, DI, Relay, and Analog Input)
LN1152-868M
Indoor IP30 LoRa Node Controller – EU868 MHz. (RS232, RS485, DI, Relay, and Analog Input)
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Build a Smarter, Connected World
PLANET LN1152 is an indoor LoRa node controller used for data acquisition from multiple sensors. It contains different I/O interfaces including analog inputs, digital inputs, relay outputs and serial ports to simplify the deployment and replacement of LoRaWAN networks. Besides, the LN1152 can trigger multiple conditions and actions without a network. With its industrial design and IP30 metal case, the LN1152 is widely used in indoor applications like smart industries, building automation, etc.
LoRaWAN-based Controller with Rich Industrial Interfaces
The LN1152 LoRaWAN Controller with built-in multiple industrial interfaces connects to all types of sensors, meters and other appliances. It also bridges Modbus data between serial and Ethernet network via LoRaWAN. The LN1152 supports LoRaWAN class C protocol to be in full compatibility with standard LoRaWAN gateways including PLANET LCG-300 series. It is ideal for large-scale IoT application deployments, such as projects for building automation, smart metering, HVAC system, etc. With multiple interfaces, LoRaWAN Controller can perfectly help retrofit legacy assets into IoT enablement.
- RS232
- RS485
- GPIO
Features
Highlights
Easy to connect with multiple wired sensors through GPIO/RS232/RS485 interfaces
Ultra-wide-distance transmission up to 10km with line of sight
Triggers multiple conditions and actions
Embedded watchdog for work stability
Industrial metal case design with wide operating temperature range
Compliant with standard LoRaWAN gateways and network servers
Specifications
Wireless Transmission
Technology: LoRaWAN
Antenna Connector: × 50 Ω SMA Connectors (Center Pin: SMA Female)
Frequency: EU868
Tx Power: 16dBm(868)/20dBm(915)
Sensitivity: -147dBm @300bps
Work Mode: OTAA/ABP Class C
Data Interfaces

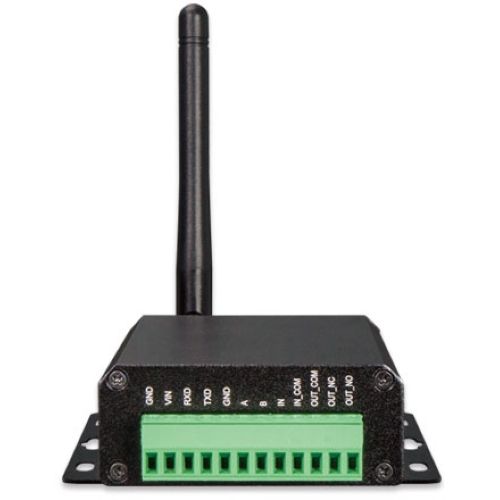

Interface Type: 3.5mm Terminal Block
IO:
Digital Input
Opto-isolated Digital Inputs, 3-24VDC (pulse counter support)
Digital Output
SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 V
Serial Port:
Ports
RS232/RS485
Baud Rate
4800~115200bps (RS232)/1200~115200 bps(RS485)
Protocol
Transparent (RS232), Modbus RTU (RS485)
Others
Configuration Port: 1 × Micro USB

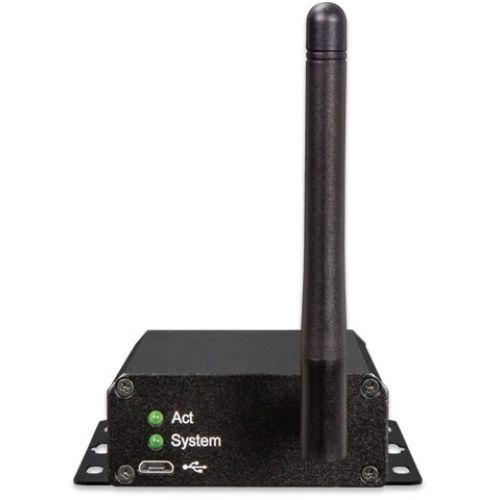

LED Indicators: 1 × System, 1 × ACT
Built-in: Watchdog, Timer
Physical Characteristics
Power Connector: 3.5mm Terminal Block
Power Supply: 5-24 VDC
Ingress Protection: IP30
Operating Temperature: -40°C to +70°C
Relative Humidity: 0% to 95% (non-condensing)
Dimensions: 79 × 60 × 24 mm
Installation: Desktop, Wall mounting
Standards Conformance
Regulatory Compliance: CE, FCC
