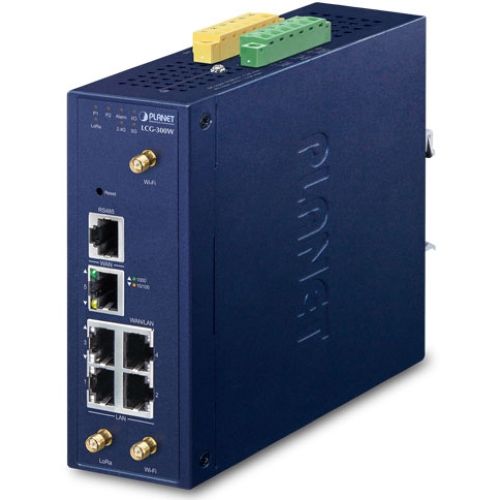

LCG-300W-EU, IP30 Industrial IoT LoRaWAN Wireless Gateway with 5-Port 10/100/1000T - EU868 MHz (Supports The Things Network & AWS network server, 802.11ax 1800Mbps, 2.4GHz and 5GHz Dual Band concurrent, 2 DI/DO, Modbus TCP, -40~75 degrees C, Dual-WAN Failover and Load
LCG-300W-EU
IP30 Industrial IoT LoRaWAN Wireless Gateway with 5-Port 10/100/1000T - EU868 MHz (Supports The Things Network & AWS network server, 802.11ax 1800Mbps, 2.4GHz and 5GHz Dual Band concurrent, 2 DI/DO, Modbus TCP, -40~75 degrees C, Dual-WAN Failover and Load
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Protocols
Built on the Long-range and Low-power Platform
PLANET LCG-300W is an all-in-one industrial-grade LoRaWAN gateway with reliable connectivity for IoT deployments. With LoRaWAN protocol support, it helps to bridge LoRa wireless network to an IP network. The LoRa wireless allows sensors to transmit data over extremely long ranges with low power consumption. The LCG-300W is fully compatible with LoRaWAN protocol and supports connection with up to 300 end-nodes. It also provides pre-configured standard LoRaWAN frequency bands for different countries. PLANET LCG-300W is a best choice to help you to promote the implementation of AIoT network.
Applications
LoRa Communication Solution
PLANET LCG-300W LoRa gateway supports LoRa and LoRaWAN standard. Transceivers configured with LoRa devices like CO2 and water sensors are embedded into end-nodes, or sensor devices that capture and transmit data to gateways over distances through wireless network. The LCG-300W can send information via Ethernet to the Network Server, which is responsible for network management functions that distribute information to each application accordingly.
Features
Highlights
Supports EU868, US915, AS923 (Sub 1G)
8 programmable parallel demodulation paths
2 x DI/DO and 1 serial port (RS485) for Modbus applications
Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards
SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
Stateful packet inspection (SPI) firewall and content filtering
Blocks DoS/DDOS attack, port range forwarding
Planet NMS controller system and CloudViewer app supported
-45 to 75 degrees C operating temperature; DIN-rail and fanless designs

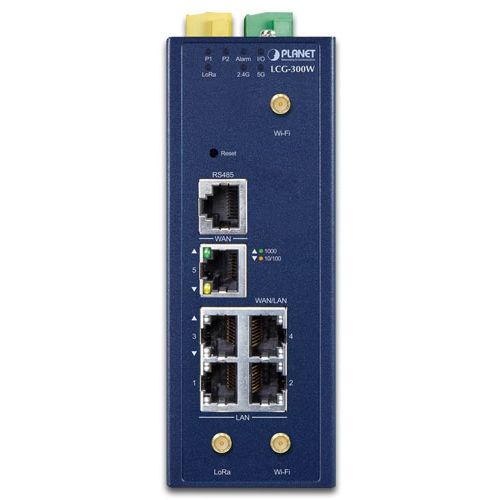

Hardware
4 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
1 x 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
1 x LoRa antenna
2 x dual band WiFi antennas
1 x serial console port (RS485)
1 x reset button
Hardware Specifications
Copper Ports:
5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
Serial Interface: RJ45 serial port
LoRa Antenna: 2 dBi external antennas with SMA connectors for LoRa
DI & DO Interfaces:
2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO):
Open collector to 24V DC, 100mA max.

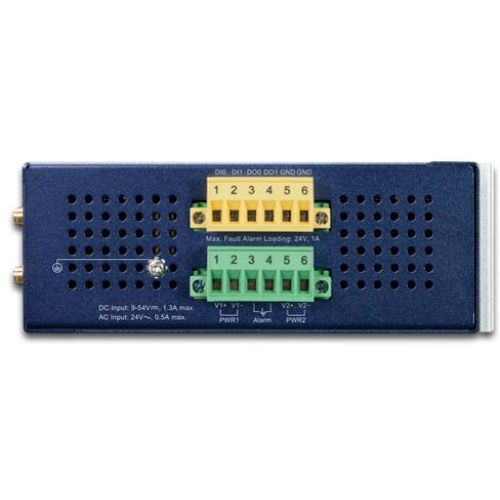

Connector:
Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button:
< 5 sec: System reboot
> 5 sec: Factory default
Enclosure: IP30 metal case
Installation: DIN-rail, desktop, wall-mounting
LED Indicators:
System:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)
LoRa (Green)
Ethernet Interfaces (Ports 1-4 and WAN Port):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Wi-Fi:
2.4G(Green)
5G(Green)
Dimensions (W x D x H): 50 x 135 x 135 mm
Weight: 0.9 kg
Power Requirements – DC: 9~54V DC, 1.3A Max.
Power Consumption: 12.5 watts/ 42.7 BTU
