ICR-2431 ADVANTECH Cellular Routers

 Features

• LTE Cat.4 with 3G/2G fallback
• 2× SIM for redundancy
• 2× Ethernet 10/100 Mbps
• 1× RS232, 1× RS485
• 1× DI, 1× DO
• Wide operational temperature range
• Wall and DIN mount options
• Linux based OS & SW customization

Introduction

Industrial cellular router ICR-2431 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this
router is its use in the Category 4 (Cat.4) services on the cellular LTE network. Cat.4 rated ICR-2431 router is capable of achieving better typical speeds in 4G coverage areas where
the network is enabled with 20 MHz of contiguous spectrum.
The peak downlink data rate for a Category 4 is approximately 150 Mbps. Also in the uplink, LTE Category 4 provides a peak data rate of 50 Mbps. The router is equipped with two
independently configurable Ethernet ports (LAN or WAN), 1× serial port RS232, 1× RS485, and with digital I/O connectivity (1× DI, 1× DO).
The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the
wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
With open Linux platform and wide possibilities of programming customer SW applications in Python, C/C++. The Advantech existing app library Router Apps (User modules) with
apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx,
and others are supported on the router.

Specifications

System

CPU: ARM926EJ-S, 600 MHz
Memory:
RAM - 128 MB
NOR Flash - 64 MB
(12 MB for Router Apps, 2 MB for customer data)
Watchdog:HW Watchdog
RTC: Battery backup RTC

Interfaces

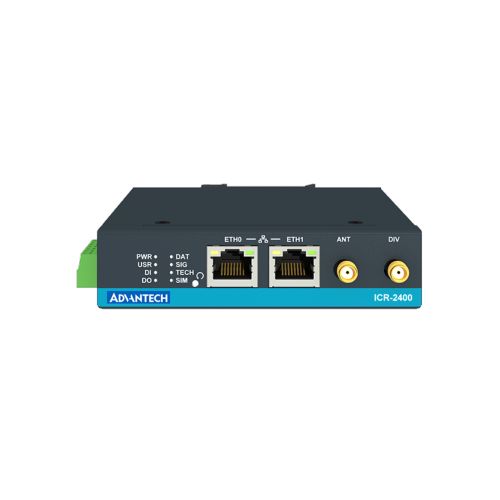

Ethernet: 2× Ethernet (1+ 1), RJ45, 10/100 Mbps

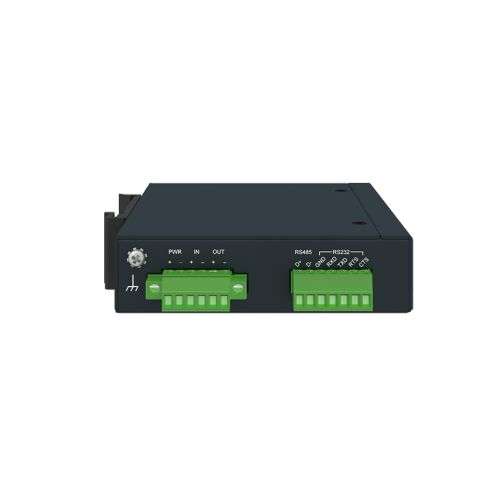

Serial Lines:
1× RS232 (Tx, Rx, GND, RTS, CTS)
1× RS485 (A(-), B(+), GND)
(7-pin terminal block)

I / O:
1× Digital Input (36V/0.5 mA)
1× Digital Output (Open Drain, 36 V/ 100 mA)
(6-pin terminal block together with PWR)

Reset Button: Reboot / Factory reset
LED Indicators: System, Signal strength, Data activity, SIM1/SIM2 status, 2G/3G/4G technology, Input, Output, User, ETH

Environmental

Power Supply: 9 – 48 V DC (6-pin terminal block together with I/O)
Consuption: Idle 2 W / Average 3,5 W / Peak 10 W
Operating Temperature: -40 to +75 °C
Storage Temperature: -40 to +85 °C
Humidity: 5 to 95 %
IP Cover: IP30

Physical Characteristics

Dimensions: 103 mm x 95 mm x 25 mm
Enclosure: Metal Case, Grounding Screw
Mounting: Wall mount, Optional DIN Rail mount
Weight: 300 g
