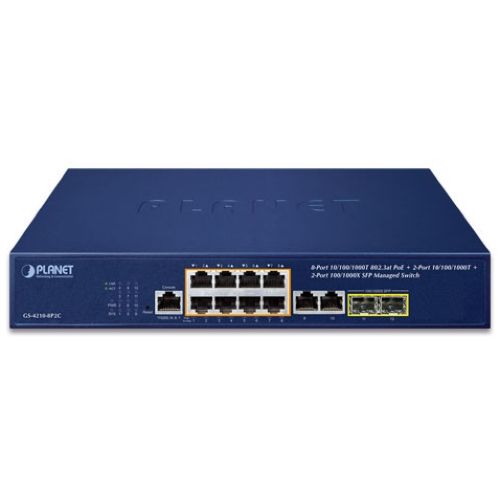

GS-4210-8P2C Planet Managed POE

A Perfect Managed PoE+ Switch with Advanced L2/L4 Switching and Security

PLANET GS-4210-8P2C is a cost-optimized, desktop-size Managed Gigabit PoE+ Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports featuring 32-watt 802.3at PoE+, 2 additional Gigabit copper ports and 2 additional 100/1000BASE-X SFP fiber slots. With a total power budget of up to 120 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.



High Scalability for Today’s 8-channel IP Surveillance Solution

The GS-4210-8P2C comes with non-blocking design and SFP fiber-optic modules, bringing network infrastructure higher flexibility but lower in cost. Providing eight 10/100/1000BASE-T 802.3at PoE+ ports, two 10/100/1000BASE-T copper ports, in-line power interfaces and two Gigabit SFP ports, the GS-4210-8P2C can easily build a video surveillance on the NVR system for the SOHO/SMBs. For instance, it can work with eight PoE IP cameras and extend the network infrastructure easily for today’s businesses.



Department/Workgroup 802.3at PoE+ Network

Providing 8 PoE+ in-line power interfaces, the GS-4210-8P2C can easily build a power that centrally controls IP phone system, IP camera system and wireless AP group for enterprises. The GS-4210-8P2C delivers full ports of 802.3af/at compliant Gigabit Ethernet network connectivity with high-performance and cost-effective advantages for the increasing number of PoE IP telephones, PoE IP cameras, PoE wireless access points and other devices applied at the edge of the small or medium enterprise network. The GS-4210-8P2C improves the network efficiency and protects the network clients with the powerful features:

8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 8-Port IEEE 802.3at/af PoE Injector function (Port-1 to Port-8)

2-Port 10/100/1000BASE-T Gigabit RJ45

2 100/1000BASE-X SFP ports

RJ45 console interface for switch basic management and setup



Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE

Backward compatible with IEEE 802.3af Power over Ethernet

Up to 8 ports of IEEE 802.3af/802.3at devices powered

Supports PoE power up to 32 watts for each PoE port

Auto detects powered device (PD)

Circuit protection prevents power interference between ports

Remote power feeding up to 100 meters in standard mode and 250m in extend mode

PoE management

Per port PoE function enable/disable

PoE port power feeding priority

Per PoE port power allocation

PD classification detection

PD alive check

PoE schedule



Copper Ports: 10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports

SFP Ports:

2 x 100/1000BASE-X SFP interfaces

Supports 100/1000Mbps dual mode and DDM

PoE Injector Port:

8 ports with 802.3at/af PoE injector function with Port-1 to Port-8

Console 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)

Reset Button:

< 5 sec: System reboot

> 5 sec: Factory default

Dimensions (W x D x H): 280 x 180 x 44 mm, 1U height

Weight: 1.7kg

Enclosure: Metal

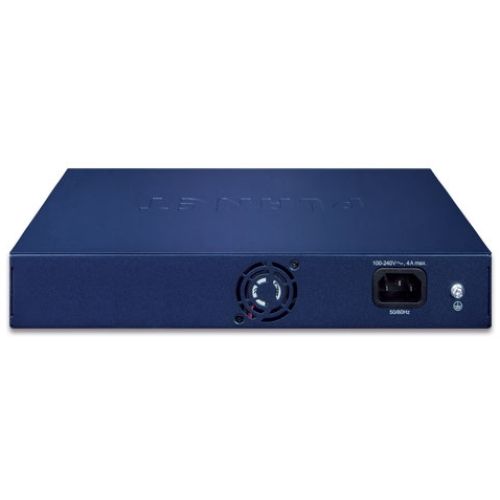

Power Requirements: AC 100~240V, 50/60Hz, 4A, auto-sensing

Power Consumption/ Dissipation: 154 watts (max.)/525BTU

ESD Protection:

Contact Discharge 6KV DC

Air Discharge 8KV DC

Fan: 1 fixed speed Fan

LED:

System:

PWR (Green)

SYS (Green)

Per 10/100/1000T RJ45Ports Port (Port 1 to Port 10):

LNK (Green), ACT (Blinks)

Per PoE Port (Port 1 to Port 8):

PoE-in-use (Amber)

Per Gigabit SFP Port (Port 11 to Port 12):

LNK (Green), ACT (Blinks)
