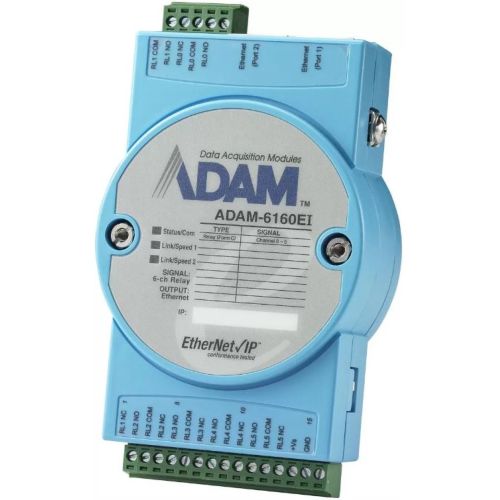

ADAM-6160EI-AE ADVANTECH Ethernet IO Modules

 Relay Output

Channels: 5 Form C and 1 Form A
Contact Rating:
    250 VAC @ 5A
    30 VDC @ 5A
Max. Switching Voltage:
    400 VAC
    300 VDC
Breakdown Voltage: 500 VAC (50/60Hz)
Max. Breakdown Capacity: 1250 VA
Frequency of Operation:
    360 operations/hour with load
    72,000 operations/hour without load
Set/Reset Time: 8 ms/8 ms
Mechanical Endurance: > 15 x 106 operations
Isolation between Contact: 1000 Vrms
Insulation Resistance: > 10 GΩ @ 500 VDC

General Specifications

LAN: 10/100Base-T(X)
Power Consumption: 4.5 W @ 24 VDC
Connectors: 2 x RJ-45 LAN, (Daisy Chain) Plug-in screw terminal block (I/O and power)
Watchdog: System (1.6 second)
Power Input: 10 ~ 30 VDC

Protection

Over Voltage Protection: ±35 VDC
Isolation Protection: 2,500 VDC
Power Reversal Protection

Environment

Operating Temperature: -10 ~ 70°C (14 ~ 158°F)
Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity: 20 ~ 95% RH (non-condensing)
Storage Humidity: 0 ~ 95% RH (non-condensing)
