UC-8500-WLAN33-Q-AC MOXA Rail Computers

UC-8500-WLAN33-Q-AC MOXA

UC-8500-WLAN33-Q-AC MOXA

UC-8500-WLAN33-Q-AC

3x3 802.11 ac/a/b/g/n module, 3 QMA connectors with cable, screws

Quantità':

Prezzo per pezzo

€ 372,08

(IVA esclusa)

€ 453,94 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 372,08
5+ pz. € 360,923
10+ pz. € 353,485

Prezzo di 1 pz. iva (22%) inclusa: € 453,94

Disponibilità: 10 gg lav

Brand: MOXA

SKU: 110980

Model: UC-8500-WLAN33-Q-AC

Bisogno di aiuto?


Certificati

CE Certificato
FCC Certificato
UL Certificato
EN 50121-4 Certificato
EN 50155 Certificato
RoHS Certificato

 Features

  • Complies with all EN 50155 mandatory test items*
  • Supports up to 3 WWAN connections and 2 SIM card slots per cellular module
  • Supports 1 WLAN (IEEE 802.11b/g/n/ac) connection
  • Single-panel I/O design for reduced installation space and easier maintenance
  • Front-side access panel for easy maintenance
  • Isolated 24 to 110 VDC power input with power-ignition function suitable for vehicle applications
  • EN 50155 Tx (-40 to 70°C) operating temperature for harsh environments
  • 5-year warranty

Introduction

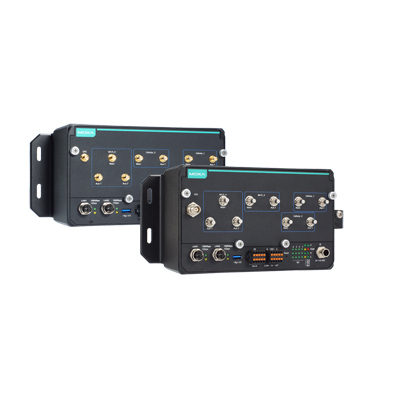

Moxa’s UC-8580 is an innovative computing platform designed specifically for transportation applications.

The UC-8580 is available with one of two different types of antenna connector. The SMA model supports all SMA type connectors. The QMA model supports TNC connectors for GPS and QMA connectors for Wi-Fi/cellular modules, and has four slots for installing wireless modules. Three slots support 4G/LTE modules, and one slot supports a Wi-Fi module. Each 4G/LTE module has two SIM card slots, which can be used to enable redundant cellular network communications or geo-fencing SIM card selection by leveraging the built-in Wireless Manager, a Moxa software utility for cellular and Wi-Fi management.

The UC-8580 uses an open platform based on Debian 8 with Linux Kernel 4.1, allowing solution providers to manage software packages via Debian’s APT (Advanced Packaging Tools), or develop software applications with Moxa’s API Library and GNU C Library.

The UC-8580’s single-sided I/O design is ideal for vehicle applications, which typically do not have a lot of room for installing communications devices. The UC-8580 also has an access panel on the front side, allowing users to install or change wireless modules, SIM cards, or mSATA cards without removing the entire unit from the wall after being mounted.

The UC-8580 can be used as a communication-centric computing platform for the following applications:
• Vehicle-to-ground communication gateway
• TCMS T2G (train-to-ground) gateway
• Mobile condition monitoring unit
• Ethernet Consist Network T2G gateway
• Onboard wireless automated fare collection unit

Hardware Specifications

Computer
CPU: ARMv7 Cortex-A7 dual-core 1 GHz processor
OS (pre-installed): Debian 8 (Linux Kernel v4.1)
USB: USB 2.0/3.0 hosts x 1 (Type A connector)
DRAM: 1 GB DDR3L SDRAM

Wireless-Enabled Mini-PCIe Slots
Number of Slots: 4
Slots 1 to 3: USB signal for cellular modules
Slot 4: PCIe signal for Wi-Fi module
SIM Card Slots: 2 SIM card slots per Mini-PCIe slot for celular modules
Note: Wireless modules must be purchased separately.

Storage
Main Storage: 4 GB eMMC for OS storage
Storage Expansion: mSATA slots x 1

Ethernet Interface
LAN: Auto-sensing 10/100/1000 Mbps Ethernet ports x 2 (M12 X-coded, 8-pin)
Magnetic Isolation Protection: 1.5 kV built in

GPS Module
Receiver Types:
• 72-channel u-blox M8 engine
• GPS L1C/A
• SBAS WAAS, EGNOS, and MSAS
• QZSS L1C/A
• GLONASS L1OF
• BeiDou B1

Protocols:
NMEA 0183, version 4.0 (V2.3 or V4.1 configurable)    Types: Input/output, ASCII
UBX     Types: Input/output, binary, u-blox proprietary
RTCM     Types: Input message, 1, 2, 3, 9

Time Pulse: 0.25 Hz to 10 MHz (configurable)
Velocity Accuracy: 0.05 m/s
Heading Accuracy: 0.3 degrees
Assisted GNSS (A-GNSS): Supports AssistNow Online and AssistNow
Offline A-GNSS services, supports AssistNow Autonomous, and is
OMA SUPL compliant
Operational Limits (assuming Airborne < 4 g platform):
• Dynamics: 4 g
• Altitude: 50,000 m
• Velocity: 500 m/s
Antenna Type: Passive/Active
Connector Type: SMA/TNC

Serial Interface
Serial Standards: RS-232/422/485 software-selectable ports (5-pin terminal block connector) x 2
Console Port: RS-232 (TxD, RxD, GND), 4-pin pin-header output (115200, n, 8, 1)

Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: XON/XOFF, ADDC® (automatic data direction control)
for RS-485
Baudrate: 115200 bps (max.)

Serial Signals
RS-232: TxD, RxD, RTS, CTS, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND

Digital Input/Output
Digital Inputs: 3 (terminal block)
Digital Input Default Value: High
Input Voltage: 0 to 30 VDC at 25 Hz
Digital Input Levels for Dry Contacts:
Logic level 0: Close to GND
Logic level 1: Open

Digital Input Levels for Wet Contacts:
Logic level 0: +3 V max.
Logic level 1: +10 V to +30 V (COM to DI)

Digital Outputs: 3 (terminal block)
DO Default Value: High-Z
DO IO Type: Open drain
Output Current: Max. 200 mA per channel
On-State Voltage: 24 VDC nominal, open collector to 30 VDC
Isolation: 3 KV optical isolation
Connector: 10-pin terminal blocks with CAGE CLAMP® connection (4 inputs, COM, GND, 4 outputs)

LEDs
System: Power x 1, System Ready x 1
LAN: 100/1000M x 4
Serial: Tx x 2, Rx x 2
Programmable: Diagnostics x 1
Wireless Signal Strength: Cellular/Wi-Fi x 12

Buttons
Reset to Default: Resets the device to factory default values

Physical Characteristics
Housing: AI 5052 + ADC 12
Weight: 2200 g (4.86 lb)
Dimensions:
• 220 x 134 x 88 mm (8.66 x 5.28 x 3.46 in) without wallmount ears
• 270 x 134 x 88 mm (10.63 x 5.28 x 3.46 in) with wallmount ears
Mounting: Wall

Environmental Limits
Operating Temperature:
• UC-8580-LX, UC-8580-Q-LX: EN 50155 Class T1, -25 to 55°C (-13 to 131°F)
• UC-8580-T-LX, UC-8580-T-Q-LX, UC-8580-T-CT-LX, UC-8580-T-CT-Q-LX (with LTE module): EN 50155 Class Tx, -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-Vibration:
• 7.9 m/s2 @ EN 50155 random wave, 5-150 Hz, 5 hrs per axis
• 1.01 m/s2 @ EN 50155 random wave, 5-150 Hz, 20 mins per axis
Anti-Shock: 50 m/s2 @ EN 50155, half sine wave, 30 ms
Conformal Coating: EN 50155 Tx

Power Requirements
Input Voltage: 24 to 110 VDC (EN 50155 nominal input voltages: 24/48/72/96/110 V)
Input Current: 1.66 A @ 24 VDC; 0.36 A @ 110 VDC
Power Consumption: Less than 40 W (with external loading on USB port and Mini-PCIe module)
Power-to-Chassis Isolation: 1400 VDC (EN 50155 power interruption class S2)
Connector: M12 4-pin A-coded (2-pin M12, V+, V-)

Standards and Certifications
Safety: UL 60950-1, CSA C22.2 No. 60950-1-03, EN 60950-1
EMC: EN 55032 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, FCC Part 15 Subpart B Class A
Green Product: RoHS, CRoHS, WEEE
Rail Traffic: EN 50155, EN 50121-4, EN 45545, NFPA 130

Reliability
Alert Tools: Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Warranty
Warranty Period: 5 years

Software Specifications

Linux
OS: Debian 8
Web Server (Apache): Allows you to create and manage websites; supports PHP and XML
Terminal Server (SSH): SSH allows remote logins to a secure encrypted console from any connected network
Kernel: GNU/Linux 4.1
System Shell: dash, bash
Text Editor: vim, nano
File System: Ext2, Ext3, Ext4
Internet Protocol Suite: TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SSH, PPP, SFTP, RSYNC, SSL
Programming Language Support: PHP, Perl, Python
Internet Security: OpenVPN, iptables
Cryptographic Hardware Accelerators: AES, SHA, OpenSSL
Self Diagnosis: Check the status of system and hardware components via software
Linux Board Support Packages (BSP): GCC C/C++ cross development tool chain: Bootloader/Kernel/filesystem
Cellular Networking:
• WVDIAL: Point-to-Point Protocol dialer that dials a modem and starts pppd service to connect to the Internet
• QMI (Qualcomm MSM Interface): Glib-based library for talking to WWAN modems and devices that speak the Qualcomm MSM Interface (QMI) protocol
Watchdog: Features a hardware function to trigger system reset in a user-specified time interval (Linux standard provided)
Application Development Software:
• Moxa API Library (Watchdog timer, Moxa serial I/O control, Moxa DI/ DO API)
• GNU C/C++ cross-compiler
• GNU C library
• GDB source-level debugging server
Software Protection: Encryption tool for user-executable files (based on patented Moxa technology)
Wireless Communication Management Tool: SW utility and SDK for the management of wireless interfaces; supports the management of dual-SIM-on-single-modem
