TCC-120I MOXA serial converters

Features and Benefits

• Boost serial signal to extend transmission distance
• Wall or DIN-Rail mounting
• Terminal block for easy wiring
• Power input from terminal block
• DIP switch setting for built-in terminator (120 ohm)
• Boost RS-422 or RS-485 signal, or convert RS-422 to RS-485
• 2 kV isolation protection (TCC-120I)

Introduction

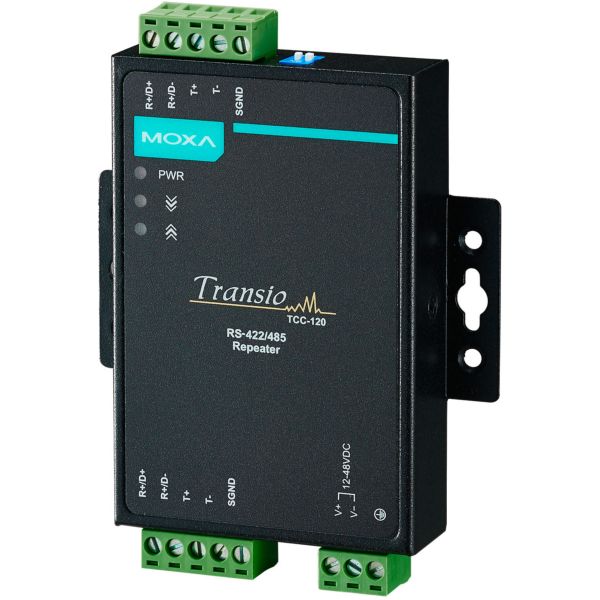

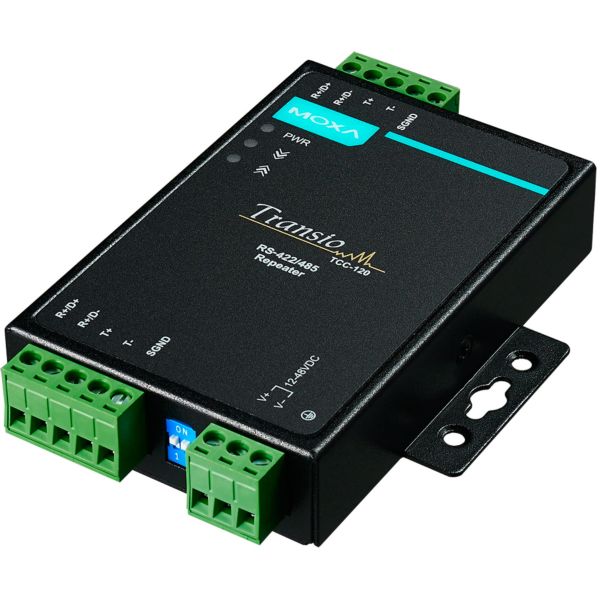

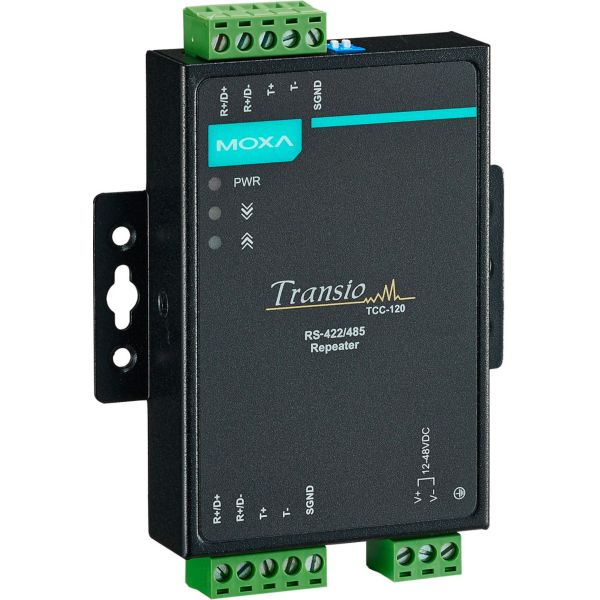

The TCC-120 and TCC-120I are RS-422/485 converters/repeaters designed to extend RS-422/485 transmission distance. Both products have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, and external terminal block for power. In addition, the TCC-120I supports optical isolation for system protection. The TCC-120 and TCC-120I are ideal RS-422/485 converters/repeaters for critical industrial environments.

Serial Communication

Connectors: Terminal Block on both ends
Baudrate: 50 bps to 921.6 kbps
Signals:
     RS-422/485-4w: TxD+, TxD-, RxD+, RxD-
     RS-485-2w: Data+, Data-
RS-485 Data Direction Control: ADDC® (automatic data direction control)
ESD Protection: 15 kV for all signals
Optical Isolation: 2 kV (TCC-120I only)

Physical Characteristics

Housing: Metal
Dimensions: 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
Weight: 148 ± 5 g

Environmental Limits

Operating Temperature: -20 to 60°C (-4 to 140°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

Source of Power Input: Power input jack
Input Voltage: 12 to 48 VDC
Power Consumption:
     TCC-120: 65 mA @ 12 V
     TCC-120I: 180 mA @ 12 V
Voltage Reversal Protection: Protects against V+/V- reversal
Over Current Protection: Protects against two signals shorted together

Standards and Certifications

Safety: UL 60950-1
EMC: CE, FCC
EMI: FCC Part 15 Subpart B Class B
EMS:
     EN 61000-4-2 (ESD) Level 2,
     EN 61000-4-3 (RS) Level 2,
     EN 61000-4-4 (EFT) Level 2,
     EN 61000-4-5 (Surge) Level 2,
     EN 61000-4-6 (CS) Level 2,
     EN 61000-4-8 (PFMF) Level 1
Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 1,949,025 hrs
Database: Telcordia (Bellcore), GB

Warranty

Warranty Period: 5 years
