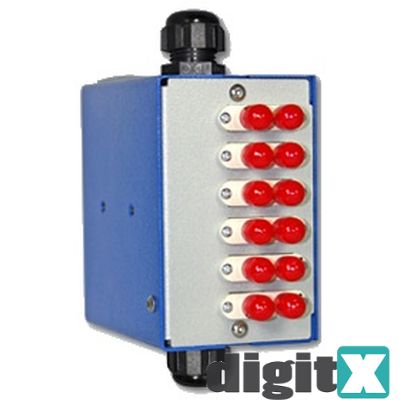

SNAP-12ST-MM
SNAP Compact Fiber Optic Patch Panel with 6ea. multimode ST/ST duplex fiber adapters.
Prodotti Correlati
Prodotti FIBREFAB alternativi:
Features and Benefits
- Compact size perfect for limited space enclosures
- UL Listed 1863
- Versatile surface or DIN-Rail mount capability
- Slide-hinged faceplate aids field termination
- Patch or fusion splice field termination standard
- Rugged metal construction with lifetime warranty
- One splice holder for up to 12 heat-shrink splices
Introduction
Compact DIN-Rail or surface mount fiber optic patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes a splice tray to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free”.
Specifications
Standards: UL Listed 1863 (Communications-Circuit Accessories), CE
Operating temperature: -40°C to 75°C
Storage/transport temperature: -40°C to 80°C
Relative humidity (non-condensing): 10% to 95%
Insertion Loss: ≤.3dB (Multimode), ≤.2dB (Singlemode)
Plug/Unplug Durability: 1000 times
Mechanical Construction
Dimensions with adapters installed: (H x D x W) 6.25” x 5.125” x 2.75”
Mounting Options: Rear DIN-Rail, Side DIN-Rail or surface mount
Weight: 1.5lbs.
Protection class: IP20
Materials of Construction
Patch panel body and faceplate: 18 gauge powder-coat painted steel
Fiber optic adapters: UL 90 V-0 Thermoplastic
Cable Glands: Plastic with max. cable diameter of 12mm (14mm max. also available)
Warranty
Lifetime warranty on materials and workmanship.
Scope of Delivery
Patch panel, DIN-Rail mounting adapter, 2ea. cable glands.
