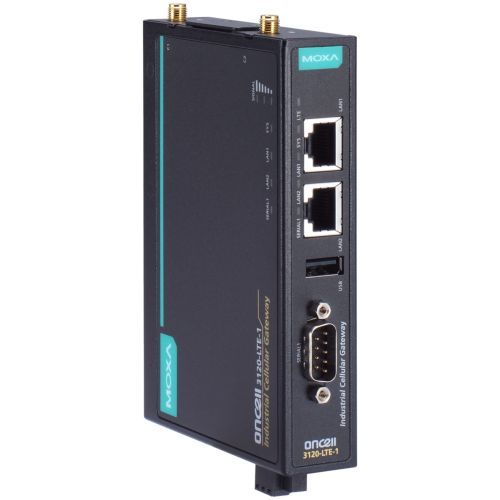

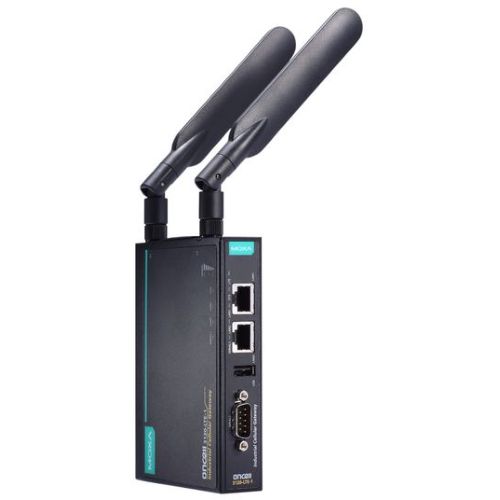

OnCell 3120-LTE-1-AU MOXA Cellular Gateways

Introduction

The OnCell 3120-LTE-1 Series is a set of reliable, secure, low power consumption LTE gateways with state-of-the-art global LTE Cat 1 coverage.
These LTE cellular gateways provide reliable connections from remote serial and Ethernet devices to a cellular network so that your applications can be easily implemented for IIoT remote-access scenarios.
With its efficient power saving features, the OnCell 3120-LTE-1 Series lowers power consumption to less than 40 mW when in standby mode which can be managed using schedules.
To enhance industrial reliability, the OnCell 3120-LTE-1 features GuaranLink to ensure robust cellular connectivity.

Features and Benefits

• Low power consumption (40 mW in standby)
• GuaranLink for reliable cellular connectivity
• Dual cellular operator backup with dual-SIM
• Rugged hardware design well suited for hazardous locations (ATEX Zone 2/IECEx)
• VPN secure connection capability with IPsec, GRE, and OpenVPN protocols

Specifications

Cellular Interface

Cellular Standards LTECAT-1,HSPA,UMTS,EDGE,GPRS,GSM

LTE DataRate 10 MHzbandwidth:10.2 Mbps DL, 5.2 Mbps UL

Band Options (EU)  LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900MHz) / LTE Band 28 (700 MHz) UMTS / HSPA 2100 MHz / 850 MHz / 900 MHz

No. of SIMs  2

Cellular Antenna Connectors  2 SMA female
Ethernet Interface   10/100BaseT(X) 2 Ports (RJ45 connector)
USB Interface

No. of USB Ports    1

USB Connector  USB Type A

USB Standards  USB 2.0
Serial Interface

No. of Ports 1

Connector DB9 male

Serial Standards RS-232/422/485

Data Bits  5, 6, 7, 8

Stop Bits 1, 1.5, 2

Parity None, Even, Odd, Space, Mark

Baudrate 75 bps to 921.6 kbps

Console Port  RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
 Serial port Rs-232, RS-422, RS-482 2w, RS-482 4w
Ethernet Software Features

Management, OnCell Central Manager, GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, Wireless Search Utility

Firewall Filter: MAC, IP protocol, port-based, Access IP list

Routing NAT, Port forwarding

Security HTTPS

Time Management SNTP Client
 IPsec VPN

Authentication PSK/X.509/RSA

Encryption DES, 3DES, AES, MD5, SHA-1, DH2, DH5

Concurrent VPN Tunnels 5
OpenVPN

OpenVPN OpenVPN (client and server), Tunnel mode (routing) and TAP mode (bridge)

Encryption Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC

Concurrent VPN Tunnels 5
Power Parameters

Input Current 0.8 A (max.)

Input Voltage 9 to 36 VDC

Power Consumption 5 W (typ.)

Power Connector Terminal block

Reverse Polarity Protection Supported

Power Button Reset button
Phisical Characteristics

Housing Metal

IP Rating IP30

Dimensions 128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)

Weight 550 g (1.22 lb)

Installation DIN-rail mounting,

Wall mounting (with optional kit)

Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)

Storage Temperature (package included) -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications

EMC
EN 55032/24, EN 61000-6-2/-6-4

EMI
CISPR 22, FCC Part 15B Class A

EMS
IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz
IEC 61000-4-8: 30 A/m
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV

Freefall
IEC 60068-2-32

Hazardous Locations
ATEX, IECEx, Class I Division 2

Radio Frequency
FCC, PTCRB

Cellular Standards
EN 301489-1/17
EN 301511
EN 301908-1
AS/CA S042
EN 62311(MPE SAR)

Safety
UL 60950-1, UL 62368-1

Shock
IEC 60068-2-27

Vibration
IEC 60068-2-6
 Warranty Period 5 years
