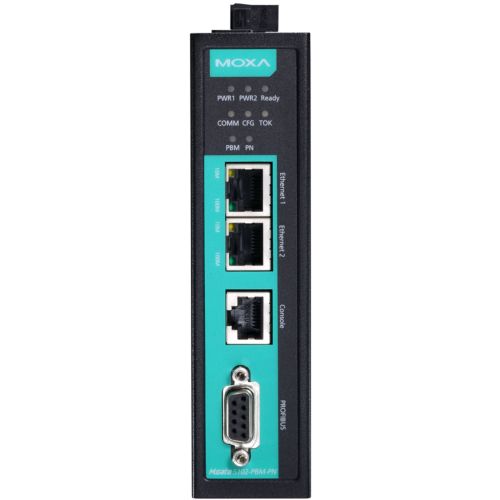

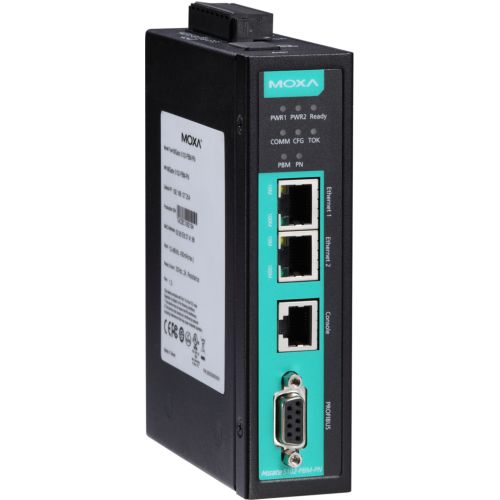

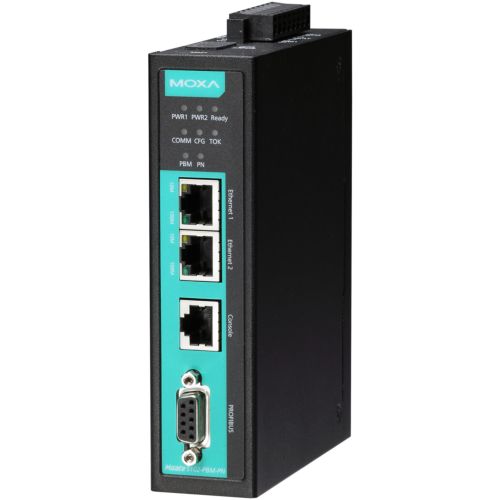

PROFIBUS to PROFINET, Gateway MGATE 5102-PBM-PN Moxa

Features and Benefits

• Protocol conversion between PROFIBUS and PROFINET
• Automatic scan of PROFIBUS devices, and easy configuration
• MicroSD card for configuration backup
• Built-in Ethernet cascading for easy wiring
• Redundant dual DC power inputs and relay output supported
• Embedded I/O monitoring and diagnostic tools
• Web-based GUI for I/O data visualization
• -40 to 75°C wide operating temperature models available

Introduction

The MGate 5102-PBM-PN gateway provides a communication portal between PROFIBUS devices (e.g., PROFIBUS PLC or drive) and the PROFINET host. All models are protected with a rugged metallic casing, are DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil & gas, power, process automation, and factory automation. Both the Windows MGate Manager utility and web console support the AutoScan function, which makes configuration and operation easy. AutoScan automatically detects all connected PROFIBUS slave devices and their available I/O modules, allowing you to configure your gateways very quickly, and a data mapping table is provided. Furthermore, one click is all that’s needed to export all PROFIBUS I/O modules to a GSDML file to assist in the configuration of the PROFINET controller (e.g., a Siemens PLC). The MGate 5102-PBM-PN provides a web console and Telnet console for remote maintenance, with both consles supporting encryption commutation functions such as HTTPS and SSH to prevent unauthorized access. The status and changes in I/O data of all PROFIBUS slaves can be monitored remotely via the web console, and users can also review the log from the web console to see which system events have occurred. A relay output alarm is provided for the power input and Ethernet cable status. These functions make it easy for maintenance engineers to troubleshoot and maintain devices.

Ethernet Interface

Protocol: PROFINET RT
Number of Ports: 2 (1 IP, Ethernet cascade)
Speed: 10/100 Mbps, Auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV (built-in)

PROFIBUS Interface

Protocol: PROFIBUS DP-V1 Master
Number of Ports: 1
Data Rate: 9600 bps to 12 Mbps
Connector: DB9 female
Isolation: 2 kV (built-in)

Serial Signals (Serial Console)

Connector: 8-pin RJ45
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Software

Configuration Options: Windows Utility, Serial Console, Web Console (HTTP/HTTPS), Telnet/SSH Console
Utilities: MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)
Support: AutoScan, MXview, SNMP (v1, v2, v3), Private MIB

Physical Characteristics

Housing: Metal, IP30 protection
Weight: 500 g
Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Sorage Card Slot: 1 microSD (SDHC) card slot supports up to 32 GB

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m (795 hPa), higher altitudes on demand

Power Requirements

Input Voltage: 12 to 48 VDC
Power Connector: Terminal block
Power Consumption: 430 mA @ 12 VDC

Standards and Certifications

Safety: UL 508, EN 60950-1
Hazardous Location:
     UL/cUL Class 1 Division 2 Groups A/B/C/D,
     ATEX Zone 2 Ex nA nC IIC T3 Gc,
     IECEx (Pending)
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS:
     EN 55024,
     EN 61000-4-2 (ESD) Level 4,
     EN 61000-4-3 (RS) Level 3,
     EN 61000-4-4 (EFT) Level 4,
     EN 61000-4-5 (Surge) Level 3,
     EN 61000-4-6 (CS) Level 3,
     EN 61000-4-8 (PFMF) Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Reliability

MTBF (mean time between failures): 980,417 hrs

Warranty

Warranty Period: 5 years
