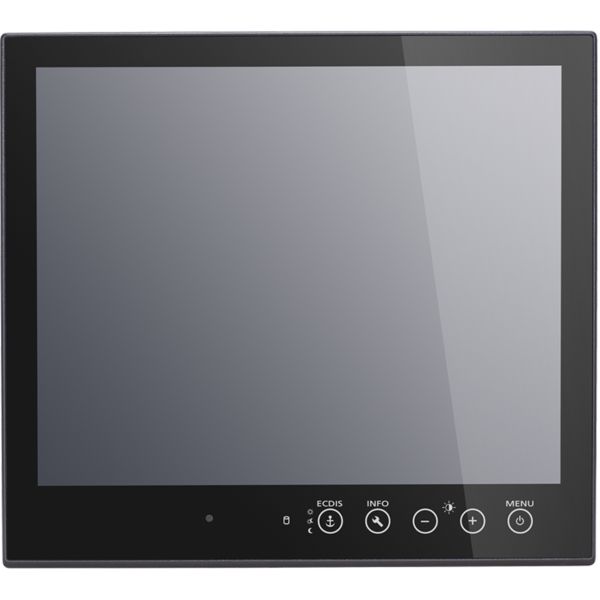

MD-219X
19-inch, 5:4 aspect ratio display (1280x1024), LED backlight, DVI-D/VGA, RS-232 & RS-422/485 serial ports, AC/DC dual power
Bisogno di aiuto?
Features
- 19-inch display
- Color calibrated for ECDIS compliant
- SavvyTouch Controls™
- Built-in selectable RS-232/422/485 interfaces
- Multi-power supplies (AC & DC)
- IP54 (front)/IP22 (rear) rated
- Optical bonded and touch panel models available on request
Introduction
The MD-219 series of marine displays comes with full range dimming, wide viewing angles and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, reducing deployment costs and overall time-to-market. The innovative and user-friendly Savvy touch display controls offer several unique features not found on any other marine display console: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates on hardware status, and a quickswitch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only). The MD-219 series displays are compliant with IEC 60945, DNV, and IACS E10, verifying their resilience and durability in maritime conditions. Their IP54 rated enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies. ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.
Display
Panel Size: 19” viewable image size
Panel Type: MVA
Aspect Ratio: 5:4
Pixels: 1280 x 1024 (SXGA)
Response Time: 20 ms (gray to gray)
Contrast Ratio: 2000:1
Light Intensity: 300 cd/m2
Viewing Angles: 178˚/178˚
Active Display Area 376.32 (H) x 301.06 (V) mm
Max Colors: 16.7M / 8-bit color
Display Interface: VGA input x 1, DVI-D input x 1
Resolution:
VGA: 640 x 480
SVGA: 800 x 600
XGA: 1024 x 768
SXGA: 1280 x 1024
Serial Interface
Serial Standards: 1 RS-232 port (DB9), 1 RS-422/485 port (terminal block)
Optical Isolation Protection: 4 kV
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Front Panel
LEDs: MENU, Brightness, INFO, ECDIS, Day/Dusk/Night,
Storage
Smart OSD: Yes
Physical Characteristics
Housing: Aluminum sheet metal
Weight: 7.8 kg
Dimensions: 429 x 387 x 75 mm (16.89 x 15.24 x 2.95in)
Mounting Flush mounting
Environmental Limits
Operating Temperature: -15 to 55°C (5 to 131°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
IP Rating:
Front: IP 54
Rear: IP 22
Anti-Vibration
0.7 g @ DNV 2.4 (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis
1 Grms @ DNV 2.4, random wave, 3-100 Hz, 2.5 hr per axis
2.1 g @ DNV 2.4 (Class C), sine wave, 2-50 Hz, 1 Oct./min., 1.5 hr per axis
Power Requirements
Input Voltage: 115 to 230 VAC, 50/60 Hz, 24 VDC
Power Consumption: 40 W to 125 w (max.)
Standards and Certifications
Safety: UL/cUL, CCC
EMC: EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A
Marine Standard: IEC-60945 4th, IEC-61162, IEC-61174
Marine Type Approval: DNV 2.4 and IACS E10, ABS, MR-A003
Green Product: RoHS, cRoHS, WEEE
Reliability
Automatic Reboot Trigger: Built-in WDT (watchdog timer) supporting 1-255 levels for time interval system reset, software programmable
MTBF (mean time between failures): 202,309 hrs
Warranty
Warranty Period: 1 year
