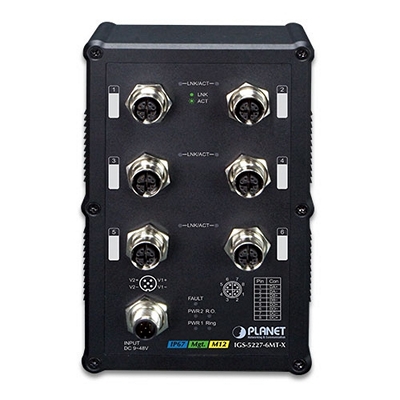

IGS-5227-6MT-X
Industrial IP67-rated 6-Port 10/100/1000T M12 Managed Ethernet Switch (-40~75 degrees C, X-coded M12)
Prodotti Correlati
Suitable for Industrial Environment
PLANET IGS-5227-6MT-X, an Industrial Layer 2+ Managed Ethernet Switch, comes with an IP67-rated industrial case, 6-port 10/100/1000T and static Layer 3 routing, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The IGS-5227-6MT-X can be easily mounted on a DIN-rail or wall taking up less space.
Specifications
Hardware Specifications

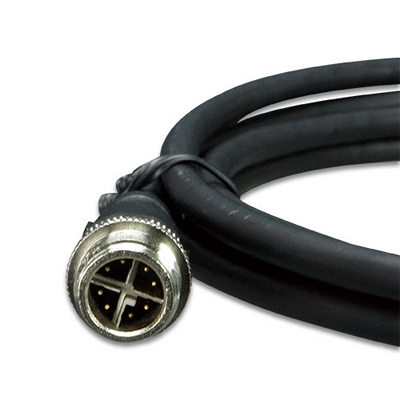

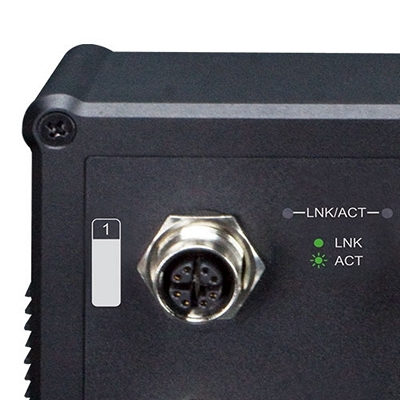

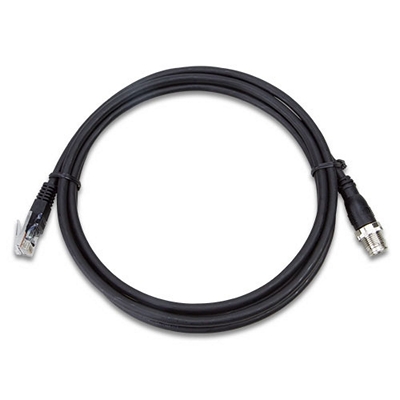

Copper Ports: 6 x M12, 8-pin X-coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports
Power Connector: 1 x M12, 5-pin A-coded male connector
Switch Architecture: Store-and-Forward
Switch Fabric: 12Gbps/non-blocking
Throughput: 8.9Mpps@64bytes
Address Table: 8K entries, automatic source address learning and aging
Shared Data Buffer: 4M bits
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame: 9K bytes
Dimensions (W x D x H): 103 x 68.2 x 163 mm
Weight: 1037g
Enclosure: IP67 aluminum case
Installation: Wall-mount kit and DIN-rail kit
LED: System:
PWR1 (Green), PWR2 (Green), Fault ( Red )
Ring (Green), R.O. (Green)
10/100/1000T RJ45 Interfaces:
LNK/ACT (Green)
Power Consumption: Max. 6.68 watts/23.41 BTU
Power Requirements: Dual 9~48V DC
ESD Protection: 6KV DC
Layer 2 Management Functions
Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status: Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring: TX/RX/Both
Many-to-1 monitor
VLAN: 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
3 groups with 6 ports per trunk
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS: Traffic classification based strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tagging
- DSCP/ToS field in IP packet
IGMP Snooping: IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping: MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List: IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control: Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces: Max. 8 VLAN interfaces
Routing Table: Max. 32 routing entries
Routing Protocols: IPv4 software static routing
IPv6 software static routing
Management
Basic Management Interfaces: Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSH/SSL, SNMP v3
SNMP MIBs: RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Railway Traffic: EN50155
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)
Environment
Operating: Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
