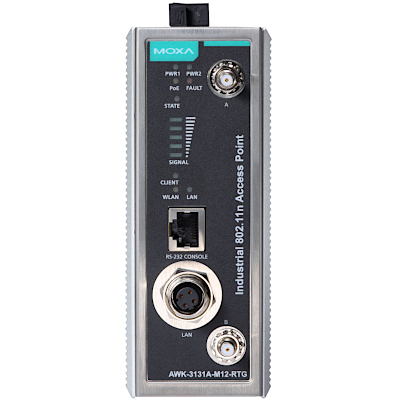

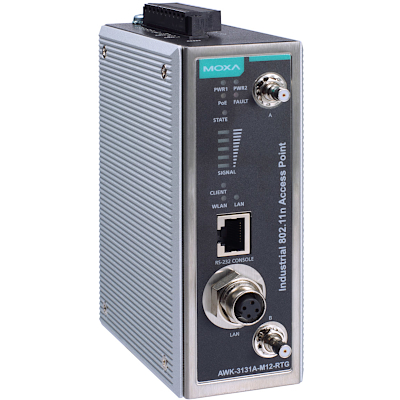

AWK-3131A-M12-RTG-EU-T
Rail Onboard In-door Single Radio, 802.11n Access Point/Client, M12/QMA, EU band, IP30, -40 to 75°C
Certificati
Features and Benefits
- IEEE 802.11a/b/g/n compliant
- M12 anti-vibration connectors
- SC optical fiber connection
- QoS (WMM) and VLAN for efficient network traffic
- Controller-based Turbo Roaming (less than 50 ms)
- Complies with all EN 50155 mandatory test items
- Wide-temperature models available for -40 to 75°C environments
Introduction
The AWK-3131A-RTG 2-in-1 industrial AP/client devices are designed specifically for train-to-ground communication and can perform reliably even when the trains reach a speed of 120 km/h. The AWK-3131A-RTG complies with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the AWK-3131A-RTG suitable for a variety of industrial applications. Installation is easy, with either DIN-rail mounting or distribution boxes, and the DIN-rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3131A-RTG a convenient yet reliable solution for any rolling stock application.
AWK-3131A-M12-RTG-EU-T, Rail Onboard In-door Single Radio, 802.11n Access Point/Client, M12/QMA, EU band, IP30, -40 to 75°C
Specifications
WLAN Interface
WLAN Standards:
802.11a/b/g/n
802.11i Wireless Security
Modulation Type:
DSSS
OFDM
802.11b: CCK @ 11/5.5 Mbps
802.11b: DQPSK @ 2 Mbps
802.11b: DBPSK @ 1 Mbps
802.11a/g: 64QAM @ 54/48 Mbps
802.11a/g: 16QAM @ 36/24 Mbps
802.11a/g: QPSK @ 18/12 Mbps
802.11a/g: BPSK @ 9/6 Mbps
802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
Frequency Band for EU (20 MHz operating channels):
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Wireless Security:
SSID broadcast enable/disable
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Personal
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
Transmission Rate:
802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
Transmitter Power for 802.11a:
23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11b:
26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g:
23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
19±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz):
23±1.5 dBm @ MCS0 20 MHz
21±1.5 dBm @ MCS1 20 MHz
21±1.5 dBm @ MCS2 20 MHz
21±1.5 dBm @ MCS3 20 MHz
20±1.5 dBm @ MCS4 20 MHz
19±1.5 dBm @ MCS5 20 MHz
18±1.5 dBm @ MCS6 20 MHz
18±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
21±1.5 dBm @ MCS9 20 MHz
21±1.5 dBm @ MCS10 20 MHz
21±1.5 dBm @ MCS11 20 MHz
20±1.5 dBm @ MCS12 20 MHz
19±1.5 dBm @ MCS13 20 MHz
18±1.5 dBm @ MCS14 20 MHz
18±1.5 dBm @ MCS15 20 MHz
23±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS1 40 MHz
20±1.5 dBm @ MCS2 40 MHz
20±1.5 dBm @ MCS3 40 MHz
19±1.5 dBm @ MCS4 40 MHz
19±1.5 dBm @ MCS5 40 MHz
18±1.5 dBm @ MCS6 40 MHz
17±1.5 dBm @ MCS7 40 MHz
23±1.5 dBm @ MCS8 40 MHz
20±1.5 dBm @ MCS9 40 MHz
20±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
20±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18±1.5 dBm @ MCS14 40 MHz
17±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11n (5 GHz):
23±1.5 dBm @ MCS0 20 MHz
20±1.5 dBm @ MCS1 20 MHz
20±1.5 dBm @ MCS2 20 MHz
20±1.5 dBm @ MCS3 20 MHz
19±1.5 dBm @ MCS4 20 MHz
18±1.5 dBm @ MCS5 20 MHz
18±1.5 dBm @ MCS6 20 MHz
18±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
20±1.5 dBm @ MCS9 20 MHz
20±1.5 dBm @ MCS10 20 MHz
20±1.5 dBm @ MCS11 20 MHz
19±1.5 dBm @ MCS12 20 MHz
19±1.5 dBm @ MCS13 20 MHz
18±1.5 dBm @ MCS14 20 MHz
18±1.5 dBm @ MCS15 20 MHz
23±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS1 40 MHz
20±1.5 dBm @ MCS2 40 MHz
20±1.5 dBm @ MCS3 40 MHz
19±1.5 dBm @ MCS4 40 MHz
18±1.5 dBm @ MCS5 40 MHz
18±1.5 dBm @ MCS6 40 MHz
18±1.5 dBm @ MCS7 40 MHz
23±1.5 dBm @ MCS8 40 MHz
20±1.5 dBm @ MCS9 40 MHz
20±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
19±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18±1.5 dBm @ MCS14 40 MHz
18±1.5 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11a:
-90 dBm @ 6 Mbps
-88 dBm @ 9 Mbps
-88 dBm @ 12 Mbps
-85 dBm @ 18 Mbps
-81 dBm @ 24 Mbps
-78 dBm @ 36 Mbps
-74 dBm @ 48 Mbps
-74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11b:
-93 dBm @ 1 Mbps
-93 dBm @ 2 Mbps
-93 dBm @ 5.5 Mbps
-88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g:
-88 dBm @ 6 Mbps
-86 dBm @ 9 Mbps
-85 dBm @ 12 Mbps
-85 dBm @ 18 Mbps
-85 dBm @ 24 Mbps
-82 dBm @ 36 Mbps
-78 dBm @ 48 Mbps
-74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz):
-89 dBm @ MCS0 20 MHz
-85 dBm @ MCS1 20 MHz
-85 dBm @ MCS2 20 MHz
-82 dBm @ MCS3 20 MHz
-78 dBm @ MCS4 20 MHz
-74 dBm @ MCS5 20 MHz
-72 dBm @ MCS6 20 MHz
-70 dBm @ MCS7 20 MHz
-95 dBm @ MCS8 20 MHz
-90 dBm @ MCS9 20 MHz
-87 dBm @ MCS10 20 MHz
-83 dBm @ MCS11 20 MHz
-80 dBm @ MCS12 20 MHz
-74 dBm @ MCS13 20 MHz
-71 dBm @ MCS14 20 MHz
-69 dBm @ MCS15 20 MHz
-87 dBm @ MCS0 40 MHz
-83 dBm @ MCS1 40 MHz
-83 dBm @ MCS2 40 MHz
-80 dBm @ MCS3 40 MHz
-76 dBm @ MCS4 40 MHz
-73 dBm @ MCS5 40 MHz
-69 dBm @ MCS6 40 MHz
-67 dBm @ MCS7 40 MHz
-93 dBm @ MCS8 40 MHz
-88 dBm @ MCS9 40 MHz
-85 dBm @ MCS10 40 MHz
-82 dBm @ MCS11 40 MHz
-78 dBm @ MCS12 40 MHz
-73 dBm @ MCS13 40 MHz
-69 dBm @ MCS14 40 MHz
-67 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11n (5 GHz):
-88 dBm @ MCS0 20 MHz
-85 dBm @ MCS1 20 MHz
-82 dBm @ MCS2 20 MHz
-79 dBm @ MCS3 20 MHz
-76 dBm @ MCS4 20 MHz
-71 dBm @ MCS5 20 MHz
-70 dBm @ MCS6 20 MHz
-69 dBm @ MCS7 20 MHz
-95 dBm @ MCS8 20 MHz
-91 dBm @ MCS9 20 MHz
-87 dBm @ MCS10 20 MHz
-80 dBm @ MCS11 20 MHz
-78 dBm @ MCS12 20 MHz
-74 dBm @ MCS13 20 MHz
-72 dBm @ MCS14 20 MHz
-71 dBm @ MCS15 20 MHz
-84 dBm @ MCS0 40 MHz
-81 dBm @ MCS1 40 MHz
-77 dBm @ MCS2 40 MHz
-75 dBm @ MCS3 40 MHz
-71 dBm @ MCS4 40 MHz
-67 dBm @ MCS5 40 MHz
-64 dBm @ MCS6 40 MHz
-63 dBm @ MCS7 40 MHz
-90 dBm @ MCS8 40 MHz
-85 dBm @ MCS9 40 MHz
-82 dBm @ MCS10 40 MHz
-81 dBm @ MCS11 40 MHz
-77 dBm @ MCS12 40 MHz
-73 dBm @ MCS13 40 MHz
-71 dBm @ MCS14 40 MHz
-68 dBm @ MCS15 40 MHz
WLAN Operation Mode: Access point, Client, Client-Router, Sniffer
Antenna Connectors: QMA
Ethernet Interface
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3af for PoE
IEEE 802.1Q for VLAN Tagging
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG only)
Ethernet Software Features
Management:
General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
AP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)
Security: RADIUS
Firewall
Filter: MAC/IP Protocol/Port-based
Serial Interface
Console Port: RS-232 (RJ45-type)
LED Interface
LED Indicators:
PWR1, PWR2, PoE*, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN (AWK-3131A-M12-RTG only),100M (AWK-3131A-SSC-RTG only)
*PoE is only available for the AWK-3131A-M12-RTG
Input/Output Interface
Digital Inputs:
2
+13 to +30 V for state 1
+3 to -30 V for state 0
Max. input current: 8 mA
Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons: Reset button
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)
Weight: 850 g (1.87 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
Input Current: 0.85 A @ 12 VDC, 0.22 A @ 48 VDC
Input Voltage: 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Connector: 1 removable 10-contact terminal block(s)
Power Consumption: Maximum 10.5 W
Reverse Polarity Protection: Supported
Environmental Limits
Operating Temperature: Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Railway: EN 50155, EN 50121-4
Railway Fire Protection: EN 45545-2
Radio: EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA
Safety: UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)
MTBF
Time: 552,454 hrs
Standards: Telcordia SR332
Warranty
Warranty Period: 5 years
